The 3D Tools



The "3D" tools are only relevant when working with 3D windows. They will be unavailable if the current window is associated with a 2D or TAG module.

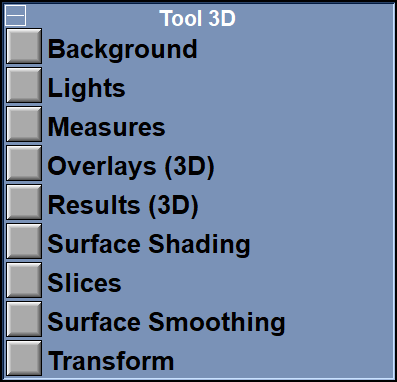

They include:



Background

This tool is used to control the color of the 3D window background.



Lights

This tool is used to control the lightning of the 3D geometries.



Measures

This tool gives you 3D measurements on the geometries present in the program.



Overlays

This tool is used to display 3D graphic objects such as axis systems or bounding boxes around the geometries..



Results

This tool is used to export results to an Excel file.



Shading

This tool is used to control how the 3D geometries are represented



Slices

This tool is used too display the 2D frames in  3D space.



Surrface Smoothing

This tool is used to perform surface smoothing on the geometries produced by the "Shell" modules.



Transform

This tool is used to modify the "transformation Matrix". It enables you to  position a camera and manipulate the 3D objects with the mouse.
