3D Slices



Watch a Video Presentation



This tool enables you to display the 2D slices in the 3D window. Only the selected frames will be displayed. You can change this selection with the "2&3D Selection" tool, or the keyboard shortcuts from the "2D Frame" tool.

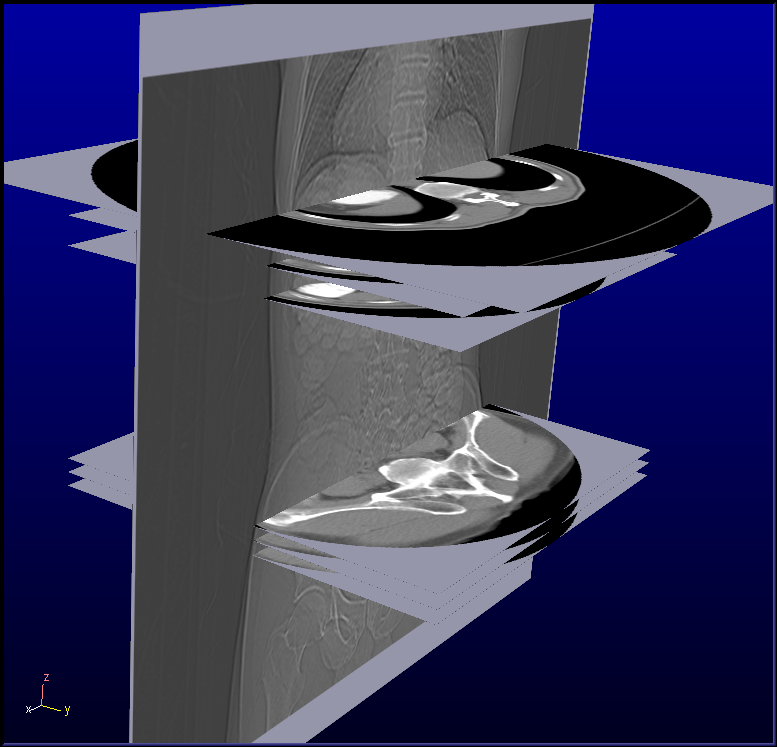

Transparency: Off

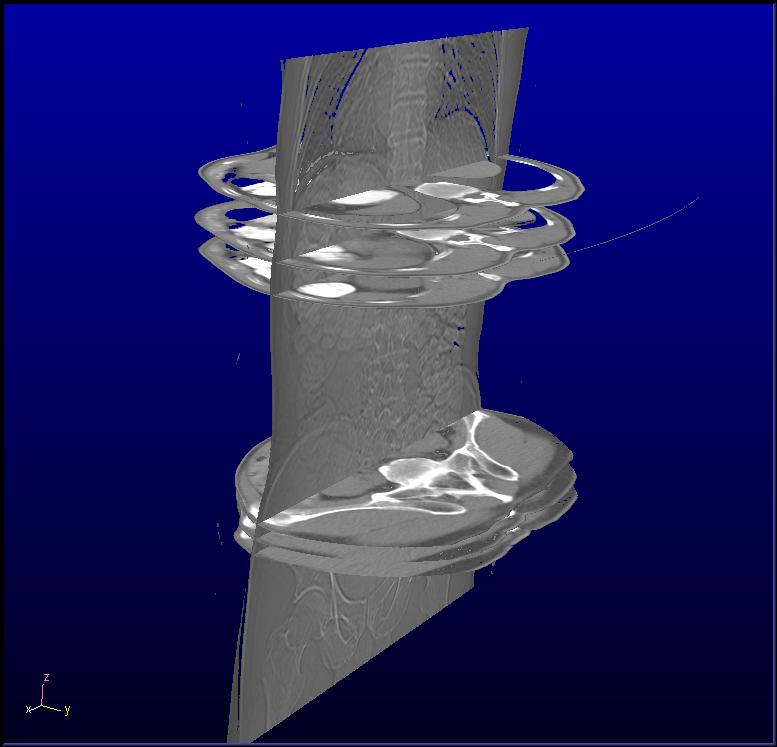

Transparency: On



Note:



You should use this tool in conjunction with the "Selection" tool to select the frames you want to display.



Note:



If you modify the GLI or TAG frames in another window, the 3D slices will automatically be updated also. However this will slow down the segmentation process in all windows.





From the Graphic Interface







ON/OFF

Enable/Disable the transparency mode.



Transparency

The slider selects the transparency threshold. All pixels whose GLI value is smaller than the threshold will be transparent.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



The shortcuts from the "2D Color Scheme" tool will affect the appearance of the slices.

The shortcuts from the "2D Frame" tool will modify the displayed slices.





From the Command Line



Commands recognized in this library:



Slice: Transparency value

Set the transparency level for the 3D slices. if value=0, the slices will have no transparency. (0 <= value <= 1.0)
