This tool enables you to extract some measurements from 3D geometries.

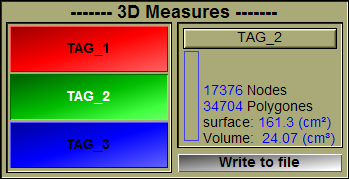

From the Graphic Interface
|
|
|
|
Select the geometry for which you want the measurements.
|
|
|
The measurements (number of nodes, number of polygons, surface of the polygons and volume of the geometry) will be displayed here.
|
|
|
The geometry’s measurements can be written to a file. |
From the Display Area
There is no Display Area interaction specific to this tool.
From the Keyboard
There is no keyboard interface specific to this tool.
From the Command Line
Commands recognized in this library:
Measure: t_geom 3D file_name
Write to file "file_name" the measures for all the geometries matching "t_geom".
Note:
|
|
|
|
|
|
