The 2D Modes



These modes either affect the database or are limited to the GLI images. When one of these modes is active the 3D and TAG tools will not be available. Any window associated with a TAG Mode will be in 2D mode (either Mode ONE or Mode ALL).

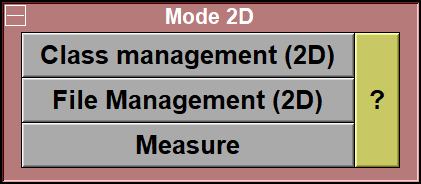

The available modes are:



DB Class Management 2D

This mode enables you to structure the database tree with the classes you want.



DB File Management 2D

This mode enables you to remove files from the database, change the GLI/TAG file associations, add an offset to the slice positions and change the image's pixel dimensions (useful if you use image formats like JPEG that do not have pixel metrics).



2D Measurements

This mode is used to make measurements on the 2D frames. A number of measurement instruments are available (rulers, calipers, protractors, Region of Interest...).





From the Keyboard



There are a few keyboard keys that have been mapped to commands that can be used in all the 2D modules









Key

Function







Space

Toggle the display mode for the current 2D window between Mode ONE and Mode ALL



Page UP / Page Down

Change the current frame within its parent



Home / End

Change the current frame by changing the parent



PAD_PLUS PAD_MINUS

Increase / decrease scaling for all selected frames



Arrow keys

Move cursor 1 pixel in any direction



Print_Screen

Create a snapshot of the display area
