Measure



In this mode, you can create and manipulate 2D measurement instruments.





From the Graphic Interface

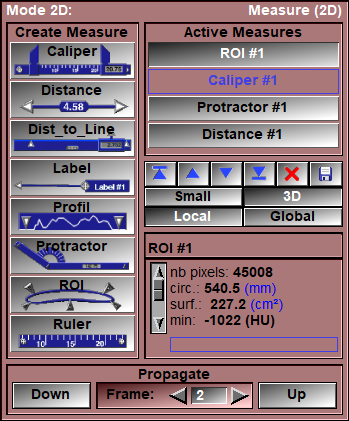

Create Measure list

Clicking on one of the tools buttons will put the corresponding instrument at the bottom of the current image.



The available instruments are:

This is another instrument to measure distances on the images.







This instrument gives the distance between 2 points.







This instrument measures the distance between a point and a line.





This instrument is used to place labels on the images.  You can change the label's name by editing the name in the rename window.





The Profile instrument gives a curve of the pixel values along its edge.







This instrument gives you the angle between 3 points.







This instrument enables you to compute some data inside a Region Of Interest (ROI). The ROI is formed by a Cardinal spline. You can move the control points simply by dragging them with the mouse. If you want more precision, you can add new control points by clicking on the ROI’s perimeter. You can also remove a control point by pressing the “Delete” key while the cursor is over it.



The computed values are:

Nb Pixels:

The number of pixels in the region

Min/max:

The minimum and maximum values of the GLI pixels in the ROI

Mean:

The mean value of the GLI pixels in the ROI

Variance:

The variance of the GLI pixel values inside the ROI

Circonf.:

The length of the ROI perimeter

Surface:

The surface covered by the ROI.







This instrument is a simple ruler, graduated in the units of the image.



Active Measure list

Selecting an instrument from this single selection list will change the color of this instrument to red and its information will be displayed in the Information box.



Top/Up/Down/Bottom

The instruments are stacked in the order of their creation. You can change that order with these buttons. The order is important: if you have the control points of multiple instruments overlap one another. The control point that will be selected for dragging belongs to the instrument on top.



  Delete

This button will cause the instrument selected by the Active Measure list to be deleted. If no instrument is selected, this button will be disabled.



 Save

This button will write to a file the values associated with the instrument selected by the Active Measure list. If no instrument is selected, this button will be disabled. The syntax used is the same as the “Save to script” command below.



Small / 3D

This setting affects the appearance of all instruments. In the “Small” mode, a simple line drawing is used to represent the instruments.   In the 3D mode, a more detailed 3D look is given to the instruments.

Small

3D



Local / Global

This setting will be applied to future instruments. In the local setting, when a new instrument is created, it will only be active in the current image. In the “Global” setting, when a new instrument is created, it will be active in all the images.



Rename Window



You can edit the name of the tool in this window

Information Text

The numerical values from the selected instrument will be displayed here.



Propagate

All the measurement tools present on the starting frame will be copied on the target frame. This tool is also described in the "Interface tools" section of the introduction





From the Display Area



When the tools are created, they will be at the base of the current frame.



The tools can be directly manipulated in the Display Area by clicking and dragging one of their control points. There are two kinds of control points:





The anchor point

The anchor points icons are either an arrow or a circle with a cross. Moving these points will drag the part of the tool that is connected to it.





The drag point

The drag point icon is an oval with arrows. Dragging this point will move the complete tool.











Mouse button

Function







Left

Drag a measurement tool control point



Right





Middle







From the Keyboard



The following keyboard key can be used while in this module:









Key

Function







Delete

If the cursor is over an instrument's control point, then pressing the "Delete" key will delete the instrument.





From the Command Line



text commands recognized in this module:



Measure: t_measure Delete

Delete all the measurement instrument matching the template "t_measure".



Measure: t_measure Save file_name

Create a script file to re-create all the measurements matching the template "t_measure".



Measure: t_measure Write file_name

Create a text file containing the measures from all the measurements matching the template "t_measure".



Measure: t_frame Caliper name a_x a_y ...

Measure: t_frame Distance name a_x a_y ...

Measure: t_frame Dist_to_Line name a_x a_y ...

Measure: t_frame Profil name a_x a_y ...

Measure: t_frame Protractor name a_x a_y ...

Measure: t_frame ROI name a_x a_y ...

Measure: t_frame Ruler name a_x a_y ...

Create the specified measurement tool named "name" with the parameters "a_x", "a_y" etc on the frame matching "t_frame".



Measure: Propagate [up|down]

Propagate the result from the current frame to the next frame in the group, either up (the default) or down.



Templates:



t_measure is a template for the measure names.

t_frame is a template for the frame names.





Note:



You can save the values of the different measuremnet instruments to the "2D Results" Excel file created by that tool.  But, you can only save one instrument of each type per slice.  For example if you have 2 distances on a slice, only the first one can be saved to the result file.  If you have both a "local" and a "global" instruments on a slice, the local one has priority.
