Tool: 2D CT Gradient



This tool is designed to get better results from Morpho and Snake modes when using CT images.



It enable the gradient of the images, used in these modes, to be limited to a defined threshold range.

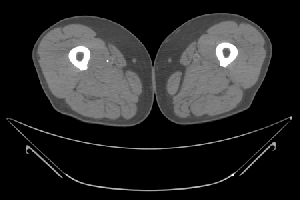

CT Image

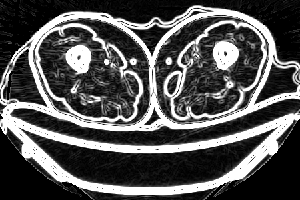

Normal gradient

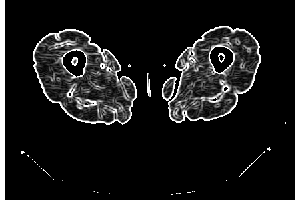

Gradient with threshold







From the Graphic Interface







TAG / Min / Max

If you have used the Thresholding or Region Growing tools, there may already be threshold values associated with different tags.  You can use the keyboard or the mouse wheel to change the tag used or the minimum / maximum threshold associated with a tag.  The gradient for any pixel outside this range will be forced to 0.



Display Gradient



For all the frames in the display area, we will display the gradient of the images instead of the images.  You can change the brightness/contrast of the displayed gradient with the Color Scheme tool.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



There is no keyboard interface specific to this class.





From the Command Line



There is no command line for this class.
