2D Color Scheme



Watch a Video Presentation



The color scheme will affect the appearance of the images in the display section.



The four buttons on the tool, “Grey”, “Mixed”, "Tint", “Over” and “Tag” control how the images are displayed in the Image Area. They are used to display either the GLI image, the TAG image or a combination of both.







Grey

Mixed

Tint

Over

TAG

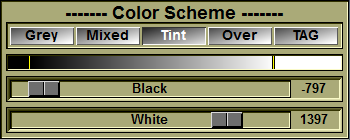

From the Graphic Interface







Grey

Only the GLI image is visible.



Mix

The Tag color image is mixed with the GLI image. By default, each image is half its normal intensity and the two are added together. The “mixed” value can be modified with the “shift +” or “shift -“ keys so that the TAG image will appear more or less dense.



Note:

Since rev-4a, the Mix mode is slightly different, if you prefer the old look, set the variable "$COLOR_CLASIC" to 1, or press "Shift F2".

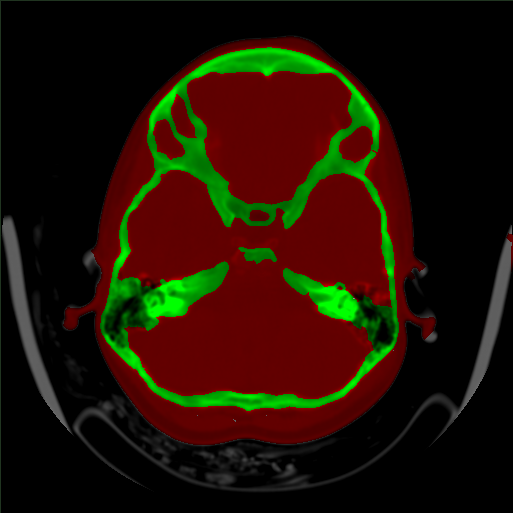

Tint

The GLI image is tinted with the TAG color.  . The “tint” value can be modified with the “shift +” or “shift -“ keys so that the TAG image will appear more or less dense.



Note:

If the GLI values are black, the TAG color will not be seen.



Over

The Tag color image is displayed over the GLI image. The GLI image is thus only visible in the regions where the Tag values are 0.



TAG

Only the Tag color image is visible.



Color map

This window displays the grey level color map used to display the GLI images.

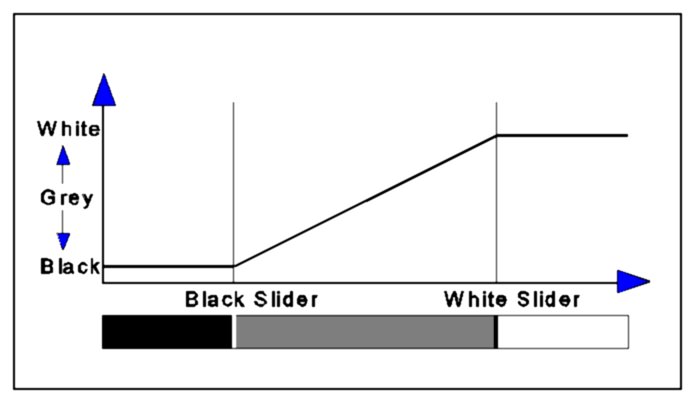

Black / White

These sliders are used to control the contrast and brightness  of the GLI image.

All values smaller than the value of the black slider are black.

All values greater than the value of the white slider are white.

All values in between are interpolated linearly.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



The following commands can also be mapped to keyboard keys as a shortcut:









Key map

Action







F1

Set the color scheme mode for all windows: F1=Grey, F2=Mixed, F3=Tint and F4=Over



F2



F3



F4





"SHIFT_MINUS" & "SHIFT_PAD_MINUS

Decrease / increase the “mix” and tint density by .1 (from: 0.1 to 0.9)



"SHIFT_PLUS" & SHIFT_PAD_PLUS







From the Command Line



System Variables defined in this tool:





$COLOR_SCHEME

(U8)

Curently selected color scheme (0=Grey, 1=Mixed, 2=Tint, 3=Over, 4=Tag)



$COLOR_VAL_MIN

(F32)

"Black" slider;s value



$COLOR_VAL_MAX

(F32)

"White" slider's value



$COLOR_CLASIC

(U8)

0=new style, 1=old style of "Mix" mode



Text commands defined in this tool:



Color: Grey

Assign the value 0 (=Grey) to the $COLOR_SCHEME variable.



Color: Mix [value]

Assign the value 1 (=Mixed) to the $COLOR_SCHEME variable. If "value" is present, assign its value to the variable $TAG_MIX that control the mix of GLI and TAG colors The accepted range

for "value" is from 0.1 to 0.9.



Color: Over

Assign the value 2 (=Over)  to the $COLOR_SCHEME variable.



Color: Tag

Assign the value 2 (=TAG) to the $COLOR_SCHEME variable.



Color: Black value

Assign the value "value" to the $COLOR_VAL_MIN variable that control the color of the GLI images. (see Color Scheme in The 2D Tools)



Color: White value

Assign the value "value" to the $COLOR_VAL_MAX variable that control the color of the GLI images. (see Color Scheme in The 2D Tools)
