This tool enables you to extract some measurements from 3D geometries.

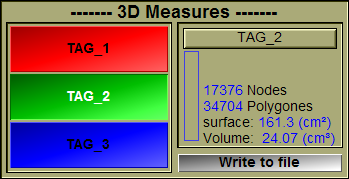

From the Graphic Interface
|
|
|
|
Select the geometry for which you want the measurements.
|
|
|
The measurements (number of nodes, number of polygons, surface of the polygons and volume of the geometry) will be displayed here.
|
|
|
The geometry’s measurements can be written to a file. |
From the Display Area
There is no Display Area interaction specific to this tool.
From the Keyboard
There is no keyboard interface specific to this tool.
From the Command Line
A list of the commands available for this tool can be found in the "SliceO_Tool\3D Measures.dll" section of Appendix B.
