The shading of the surfaces is determined by the light sources. This tool enables you to control 4 light sources and an ambient light.

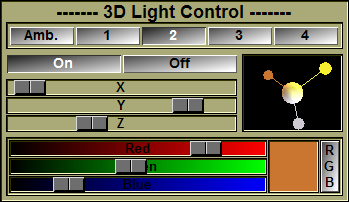

From the Graphic Interface
|
|
|
|
Select the light source that will be affected by the tool’s controls.
|
|
|
The selected light source can be toggled on or off.
|
|
|
Control the selected light direction. The lights are considered infinitely far from the objects. The sliders determine the direction from which the light comes.
|
|
|
This demo shows how a centered sphere would be lighted.
|
|
|
Change the light’s intensity and color. |
Note:
|
|
|
From the Display Area
There is no Display Area interaction specific to this tool.
From the Keyboard
There is no keyboard interface specific to this tool.
From the Command Line
A list of the commands available for this tool can be found in the "SliceO_Tool\3D Light.dll" section of Appendix B.
