Memory Manager



Watch a Video Presentation



This tool enables you to visualize and control the amount of memory used by sliceOmatic.



The memory used by the program is divided in 4 groups:

•The sliceOmatic memory. This is the memory used by the program without loading any images. This value is fixed and is estimated at 200MBytes.

•The Image memory. To accelerate its graphic refresh, sliceOmatic keep copies of the images it displays. This is the memory used by the original slices and their copies.

•The Undo memory. This is the memory used to keep the undo operations.

•The 3D Geom memory. This is the memory used by the 3D models.

•The AI memory .  This is the memory used by the AI modules.



In order to run, the program needs to fit into your computer’s memory. That memory is composed of 2 parts: your RAM memory, and the swap space. The maximum size that the program can have is either the sum of these values, or the maximum addressable space in Windows (2Gb for 32 bits Windows) if this value is smaller than that sum.



When the program becomes too big to fit in the RAM memory, part of it will be “swapped” to the swap space on the hard drive and the program’s performance will degrade. The automatic memory manager will try to prevent this by removing seldom used copies of the images from the image memory. As soon as the amount of memory used by the program reaches a critical “high water” mark, it will start cleaning the image memory until the memory usage falls under a safer “low water” mark.



You can also free up memory manually through the tool’s graphic interface, you can “Cleanup” the image memory or delete the Undo and 3D Geom memory.



Doing a cleanup of the image memory will erase the copies of the images kept by the program. The only inconvenience this will cause is a small performance degradation since the next time the program needs to display these images, it will have to recreate them instead of fetching them from memory.



Deleting the Undo or the 3D Geom memory however will have some consequences:  Deleting the Undo memory will remove any accumulated Undo. Deleting the 3D Geom memory will delete all 3D geometries from the program’s memory.

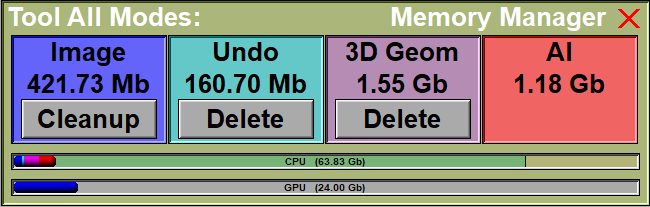

From the Graphic Interface








Erase all the copies of the images kept in memory to accelerate refresh.



Undo

Delete all Undo operations from the Undo buffer.



3D Geom

Delete all the 3D geometries



AI

Display the amount of memory used by the AI modules (can not be deleted).



CPU Memory bar

Indicate the amount of used memory. The total length of the bar is the maximum addressable memory space for the program. The yellow region represents the interval between the low water and the high water marks. The blue portion of the memory bar represents the Image memory, the cyan portion represents the Undo memory and the magenta portion represents the memory used by the 3D geometries.



GPU memory bar

If you use one of the Cuda modes, the program will also use the memory of the graphic card (GPU).  This bar indicate how much of this memory is used.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



There is no keyboard interface specific to this tool.





From the Command Line



Text commands defined in this tool:



Memory: Clear (*|images|undo|geom)

Clear the memory buffers for one (or all) of the categories.
