The AI Modes



This group contain all the AI modes along with the Radiomics mode.

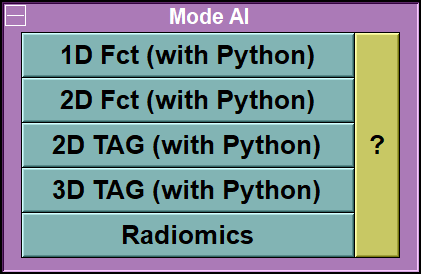

This group contain 5 buttons that can be use to open the 5 AI modes.



Note:



By default, the AI modules are not installed in sliceOmatic.

Since they are not installed by default, they are considered "additional modes" and their buttons have a bluish tint.



They are part of the installation script, but you need to select these modules when you install the program.

www.tomovision.com/support/sup_sliceO_AI_install.html



You will also need to install the language "Python" since the AI modules use it.  The instructions for the Python installation can be found here:

www.tomovision.com/support/sup_sliceO_python.html



(I included Radiomics in this group even though it is not and AI module, but since it is intended to work in conjunction with an AI, I think this is the best place for it.)





The available modes are:



•1D Fct

This mode enables you to train and/or use an AI to predict numerical values from 1D "CSV" datasets.

This mode interact with 1D Tables. This can be used, among other things, with the Radiomics results.

When this mode is active only the "All" tools will be available.



•2D Fct

This mode enables you to train and/or use an AI to predict numerical values from 2D frames.

Since this module work at the same time with images and CSV files, the main window will be split in two, the top window will display "1D" CSV data, the bottom window will display "2D" images.

When this mode is active the "All", "2D", "TAG" and "Multi-TAG" tools will be available.



•2D TAG

This mode enables you to train and/or use an AI to segment 2D slices.

This mode interact with 2D frames.

When this mode is active the "All", "2D", "TAG" and "Multi-TAG" tools will be available.



•3D TAG

This mode enables you to train and/or use an AI to segment 3D volumes (instead of 2D frames).

using a volume instead of singles slices make it easier to segment some organs.

When this mode is active the "All", "2D", "3D", "TAG" and "Multi-TAG" tools will be available.



•Radiomics

This mode enables you to compute Radiomics values from a tagged region of interest.

These values can then be used with the "1D Fct" mode to predict a numerical value (Fct) from 3D groups of slices.

This mode interact with 3D groups of frames and their TAG values.

When this mode is active the "All", "2D", "3D", "TAG" and "Multi-TAG" tools will be available.





From the Display Area



The mouse controls associated with this mode are:







Mouse button

Function





Scroll Wheel

Increase / decrease the magnification of the selected image(s).
