US Lights

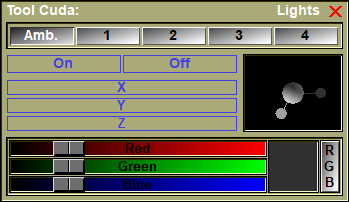

The shading of the surfaces is determined by the light sources. This tool enables you to control 4 light sources and an ambient light.





From the Graphic Interface







Light List

Select the light source that will be affected by the tool’s controls.



On/Off

The selected light source can be toggled on or off.



X/Y/Z Sliders

Control the selected light direction. The lights are considered infinitely far from the objects. The sliders determine the direction from which the light comes.



Demo Image

This demo shows how a centered sphere would be lighted.



Color Edit

Change the light’s intensity and color.



Note:



When the Ambient light is selected (Amb. Button), the On/Off buttons and the X/Y/Z Sliders are disabled.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



There is no keyboard interface specific to this tool.





From the Command Line



A list of the commands available for this tool can be found in the "SliceO_Tool\3D Light.dll" section of Appendix B.
