Pixel Grid



With this tool, you can display a grid to highlight the pixels when the image is magnified.

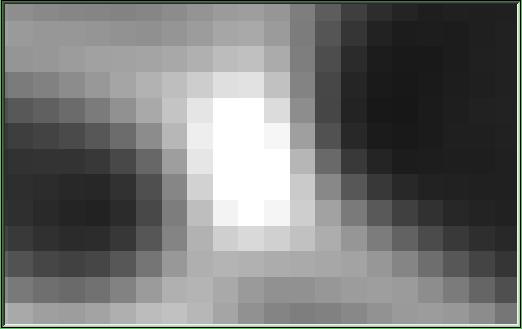

Pixel Grid: Off

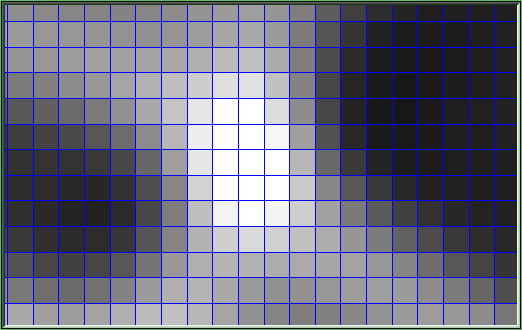

Pixel Grid: On



Note:



To grid is only displayed at high magnification.  If the image magnification is inferior to $GRID_MIN (default=5) the grid is not displayed.



From the Graphic Interface







Grid On/Off

This button is used to turn the grid on or off



Grid color

This slider is used to change the color of the grid







From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



The following commands can also be mapped to keyboard keys as a shortcut:







Key map

Action







"g"



Toggle the display of the pixel grid.





From the Command Line



System Variables defined in this tool:





$GRID_ON

(U8)

Display (=1) or not (=0) a grid on top of the image's pixels. (Default=0)



$GRID_MIN

(U8)

Minimum scale value for the grid to be displayed (Default=5)



$GRID_COLOR

(C)

Color of the grid



Text commands defined in this tool:



Grid: On (on|off|toggle)

Assign a value to the variable $GRID_ON.



Grid: Min value

Assign a value to the variable $GRID_MIN.



Grid: Color R G B

Assign a value to the variable $GRID_COLOR.
