Tool: 2D Pixel Interpolation



With this tool, you can interpolation to smooth out the GLI pixels when the image is magnified.

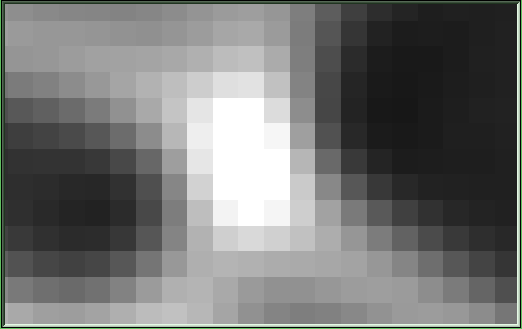

Pixel Interpolation: Off

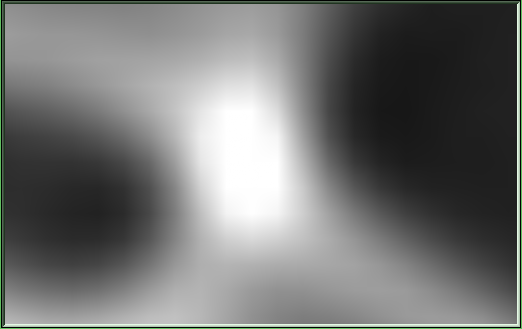

Pixel Interpolation: Linear



Pixel Interpolation: Cubic



Note:



To interpolation is only displayed at high magnification.  If the image magnification is inferior to $INTERPOLATION_MIN (default=2) the interpolation is not displayed.



Note:



To interpolation will interfere with the "Mode Thresholding" visualization.



Note:



To interpolation will severely decrease the image refresh rate.





From the Graphic Interface







Off / Linear / Cubic

These  buttons change the interpolation mode.

Off turn it off

Linear use a bilinear interpolation based on the pixels immediate neighbours.

Cubic use a Catmull-Rom cubic spline to interpolate from a matrix of 4x4 pixels.







From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



The following commands can also be mapped to keyboard keys as a shortcut:









Key map

Action









"i"



Toggle the interpolation mode between Off and Linear.





From the Command Line



System Variables defined in this library:





$INTERPOLATION_MODE

(U8)

Current interpolation mode: 0=off, 1=linear, 2=cubic (Default = 0)



$INTERPOLATION_MIN

(U8)

Minimum magnification for interpolation (Default = 2)



Commands recognized in this library:



Interpolation: Mode (Off | Linear | Cubic | Toggle)

Set the current interpolation mode:

Off = Disable interpolation ($INTERPOLATION_MODE=0).

Linear = Enable bi-linear interpolation ($INTERPOLATION_MODE=1).

Cubic = Enable bi-cubic interpolation ($INTERPOLATION_MODE=2).

Toggle = Toggle between modes off and linear.
