Units



Watch a Video Presentation



A number of tools and mode display and save dimension information. You can change the units used for these. These are just cosmetic changes, the actual computations are all based on the units specified in the image’s headers.

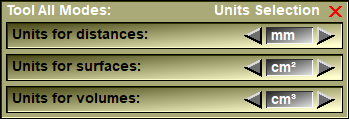

From the Graphic Interface







Distances

The choices are: m, cm, mm or µm



Surfaces

The choices are: m2, cm2, mm2 or µm2



Volumes

The choices are: m3, cm3, mm3 or µm3





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



There is no keyboard interface specific to this tool.





From the Command Line



There is no command line or variables associated with this tool.
