DICOM Info



This tool is designed to work in conjuction with the "2D Results" tool.  It enable to save up to 4 DICOM tag values in the Excel result file.



The 4 tags that are defined in the interface of the "DICOM Info" tool will be seen by the configuration page of the "2D Results" tool and can be selected. If some of the 4 tags are selected for the result file, the value of these DICOM tags, for each selected slice, will be saved in the Excel result file.

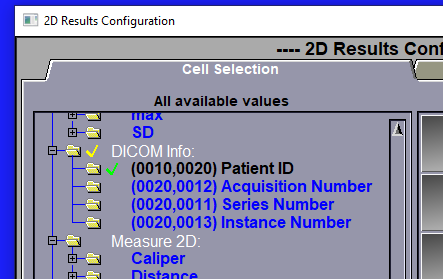

DICOM Info tags seen in the "2D Results" interface

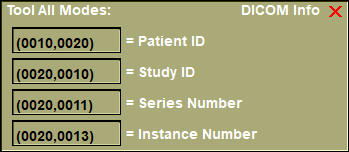

From the Graphic Interface







DICOM tag

This is the ID of the DICOM tag you want to save.  The syntax is (group,element) where the group and element are 4 digit hexadecimal values.

To change the default values, just place the cursor over the DICOM tag and type in a new ID.  When you press enter, this ID will be analyzed by the program, the "Tag name" will then be changed to the name of this new DICOM tag.  If the program does not recognize the new ID, it will reject it and keep the original ID.



Tag name



This is the name of the tag as defined in the DICOM tables in "DICOM Tables" sub-directory of the installation directory.





From the Display Area



There is no Display Area interaction specific to this tool.





From the Keyboard



There is no keyboard interface specific to this tool.





From the Command Line



DCM_Info: tag id group element

Set the group and element values for the DICO tag at position id (id = 1 to 4).  Group and element are 4 digit hexadecimal codes.





Note:



There is a problem when starting the program.  The "2D Results" is initialised by reading the "Result_2D.scp" file.  This is done before any other scripts that could set the DICOM tag in the "DICOM Info" module.  So, if in your "Result_2D.scp" file you selected a DICOM tag that is not one of the 4 default values, the program will report that it can not find the cells selected.



To make sure the Excel cells contain the DICOM tag you want, you should click the "Restore" button in the "2D Results Configuration" interface after changing the DICOM tags.  If you use a script to set the DICOM tags, then make sure the command "Result: 2D restore" is inserted after the tag changes.
