Hole Filling



In this mode, you can fill out all the holes inside the geometry.



The program will mark any voxels of holes found to be inside the surface of the geometry to be "holes".  When creating the shell, these voxels are considered filled, and no surface will be created around them, in effect removing any internal surfaces to the geometry.



Sometimes, a small holes in the surface connect the inside of the geometry to the outside.  The "Filing Radius" parameter can be used to close these small connection.

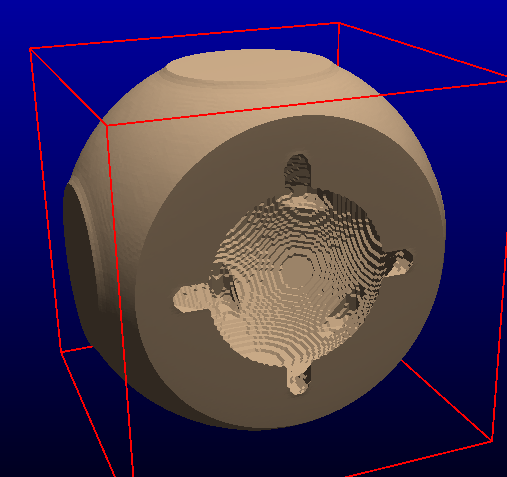

Model with hole in the middle

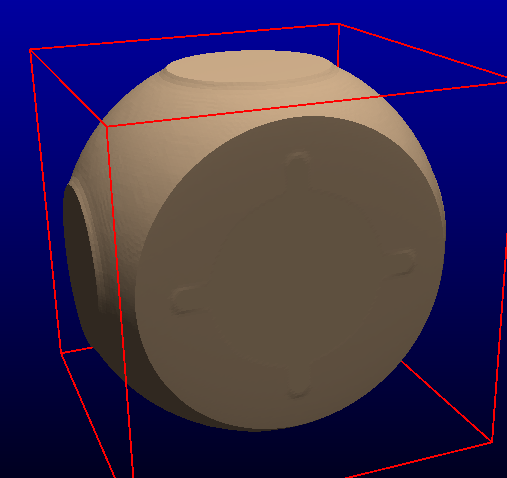

Hole filled



Note:



In these images, we used clip planes (Mode ROI) to show the interior of the volume.







From the Graphic Interface







ON/OFF

Enable or Disable the hole filling flags.  When disabled, all the "Holes" flags are removed from the volume, in effect turning this option off



Filling Radius

Activating the "Filling Radius" parameter enable the program to fill interior holes, even if they have small connection to the exterior.







From the Display Area



There is no Display Area interaction specific to this mode.





From the Keyboard



There is no keyboard interface specific to this mode.





From the Command Line



There is no command line for this mode.
