Mode TAG: ABACS Auto 2D



This mode is used to automatically segment axial CT images at the T4 or L3 anatomic level.



This tool has been developed by Voronoy Health Analytics Inc. and is available as a plug-in in sliceOmatic.



License:



This user mode require a special license.  Please contact TomoVision for more information.

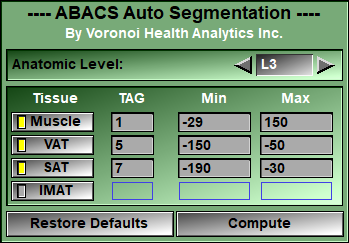

From the Graphic Interface







Anatomic Level

Select the anatomical level of the frame(s) you want to analyze.  You have 2 choices: L3 or T4.



Tissue

In this interface, you can activate/de-activate the different tissues that the mode can segment.  You can also assign a different TAG value to each tissue and fix the minimum and maximum hounsfield associated with the tissue.





Restore

Restore the default values to tissue interface.



Compute

Start the computation on all the selected frames.





From the Display Area



There is no Display Area interaction specific to this mode.





From the Keyboard



There is no keyboard interface specific to this mode.





From the Command Line



There is no command line or variables associated with this mode.
