AI 3D TAG

In this mode, you can use an AI to segment your 3D volumes, or if you want, you can train an AI on your previously segmented volumes.

This module work with 3D stack of images to automatically compute their associated TAG values.

The program will reslice the volumes along the "z" axis and work with the reslice data. So, your input volumes do not need to be in any specific orientation, you can use axial, coronal or saggital slices. You can have a gantry tilt. You can even work with volumes expressed in a spherical or cylindrical system.

The volumes will be resliced using the pixel size you specified in the Config/PreProc page. So, your input volumes can have any pixel dimensions you want. The X, Y and Z sizes do not need to be the same.

For the 3D module, we introduce the concept of "Patches". 3D volumes are to big to fit in memory, so we will work on a subset of the complete volume: the patches. The volume will be subdivided in multiple cubic patches and the AI will be trained on these patches instead of directly on the volumes. You will have control over the patches in the "Preproc" tab of the configuration pages.

Subdividing the volume in patches may introduce artifacts at the border between the patches. To prevent this, you can specify an "overlap" between the patches. When predicting TAG values we will discard the voxels on the perimeter of each patch.

Note:

This mode work with the Python language. So, you need to install Python on your system. For help on that subject, please consult the page: www.TomoVision.com/support/sup_sliceO_python.html

From the Graphic Interface

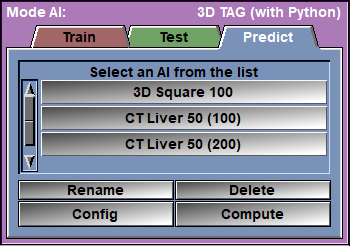

The main "AI with Python" interface has 3 tabs: Train, Test and Predict. Each of theses has a "Config" button that will open the configuration menu, and one (or more) "Compute" button that will open the appropriate page.

The Configuration Menu

Each of the 3 main pages of the "AI Python" interface has a "Config" button. This will open the configuration menu. Depending on the main pages you are in, the configuration menu will have between 2 and 7 sub-pages. For training, you need access to all the pages, for "Use", you only need 2.

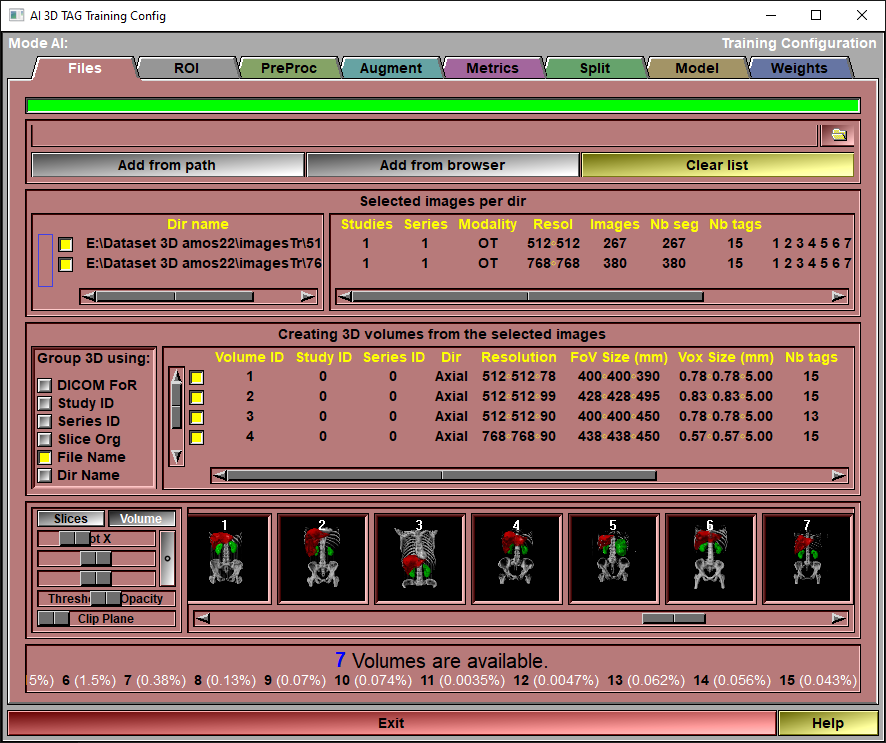

The config "File" page

Watch a Video Presentation

This page is used to specify the images that will be used either for training or testing your AI.

Progress bar

Show the progress of the program when analyzing directories

Add slices

Files can be added to this list in 3 different ways:

Simply drag&drop a directory on the interface. The program will recursively parse this directory and all its sub-directories. Each directories that contain segmented images will be add as a separate line in the interface or use the "From Path" or "From Browser" options.

From Path

You can achieve the same results by specifying the directory in the input line and clicking the "Add from path" button.

From Browser

You can add files with the "Medi Browser" interface.

Clear List

Clear the list.

Dir List

For each directory specified that contain segmented files, you will see a line of information specifying the number of studies in that directory, the number of series, the modality of the images in the directory, the resolution of these images, the total number of images and the total number of segmented images, the number of TAGs present in these segmented images and a list of these TAGs.

You can also select and de-select any of the directories by clicking on the associated button in front of each line.

Please note that only the segmented images (those that have an associated ".tag" file) are used. If a directory does not contain any segmented images, it will not have a line in the interface.

A double click on a line in this list will open the associated files in sliceOmatic.

Group 3D Using

Normally, using the DICOM Frame of Reference (FoR) UID is enough to differentiate volumes. But if that info is not available (for example with anonymized data), you can use one of the other parameters to differentiate the volumes: Study ID, Series ID, or the x/y slice origin (usually all the slices in a 3D stack have the same x and y origins), file names or files directory.

Volume List

A list of the different identified volumes. Some info is provide about each volumes. If one of the parameters is a red "Mix" value, this mean that the volumes have not been differentiated properly.

The volumes can also be disabled from this using the check-mark on the left hand side of the list.

Volume preview

A preview of all the selected volumes is available. Volumes can be seen as either a series of 2D slices (in any of the 3 main directions) or as ray-traced volumes. When viewing volumes, you can adjust the threshold slider and place a clip plane. The threshold slider will have different functions depending on the current display modes (display modes can be changed with the "Color Scheme" tool or with the F1 to F4 keys.

Grey	the slider control the opacity of the voxels as function of their grey level value. going from left to right increase the threshold at which point voxels become opaque.
Mixed	Same as the Grey, but the voxels color will reflect the TAG value of the voxels.
Tint	The threshold slider will enable to successively display each of the classes.
Over	The tagged voxels will be displayed on top of the GLI volumes. From the center to the right the threshold slider will progressively add the different TAG values, from the center to the left the slider will successively display each of the TAGs.
TAG	From the center to the right the threshold slider will progressively add the different TAG values, from the center to the left the slider will successively display each of the TAGs.

Files status

Show the number of volumes found in the different selected directories. Also, the different TAGs found in these volumes (along with their prevalence) will be displayed.

Exit

Exit the configuration interface.

Help

Display this web page.

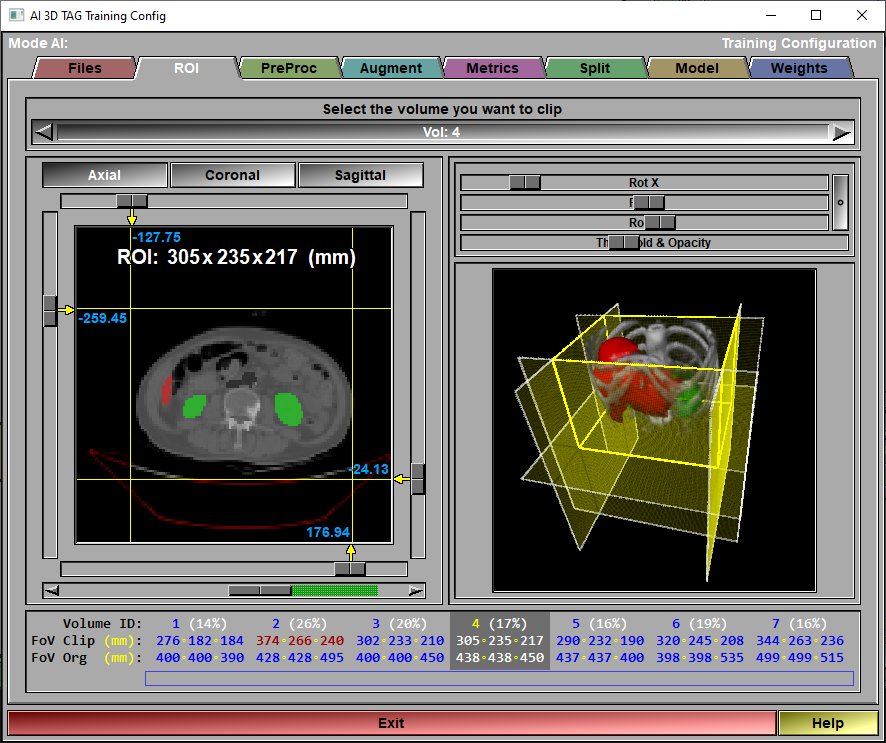

The config "ROI" page

This page is used to limit the size of the volumes. You can use clip planes to define a Region of Interest (ROI), removing parts of the volumes that do not contribute to the AI training.

These "clipping" values will automatically be saved in a file in the same location as the original slices. This clipping information will have the same name as the first slice in the volume (if the volume is composed of individual slices) or of the volume (if the volume is from a 3D file) with the "3D_clip" extension. The file is a simple ASCII file that can be looked at with notepad. It contain 3 lines for the 3 x,y,z axis. Each line give the positions (in mm) of the 2 clip planes on this axis.

; -----------------------------------------------------------------------------

; --- AI 3D Clip file ---

; --- created: 13 Oct 2024 14:53 ---

; -----------------------------------------------------------------------------

A3T: clip x 9.50 73.50

A3T: clip y 9.50 73.50

A3T: clip z 31.50 95.50

Note:

The clip planes are computed with the volume viewed in Orthogonal space. If the volume was not originally in Axial view, it will be rotated and reformated before the clip planes are applied.

Volume selection

Use this tool to select the volume you want to clip

ROI window

the clip planes can be adjusted with the left/right/top and bottom sliders. Change the view from Axial to Coronal or Sagittal to access the clip planes in the other axis. The slider at the bottom is used to scroll through the slices of the volume.

Volume view

A 3D ray-traced view of the volume is also available.

Volume status

Information on each of the loaded volumes will be displayed here.

The information is presented on 3 lines:

- The Volume ID (defined by the order the volumes where loaded in the AI module) along with the percentage of the original volume present in the ROI.

- The original FoV of the volume

- The clipped ROI dimensions. If no clip planes are defined, the ROI is the same as the original FoV.

The background of the current volume is presented in a darker grey than the others.

You can select the current volume by clicking on it's values in this window

The color of the numerical values have a meaning: Red is used for the maximim value in any of the 3 directions.

Exit

Exit the configuration interface.

Help

Display this web page.

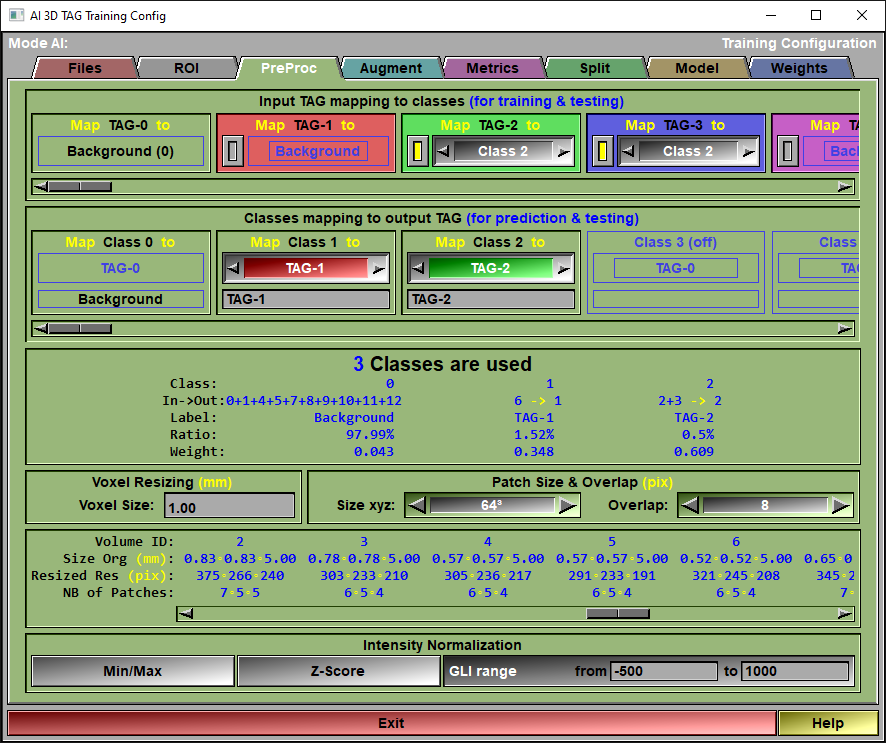

The config "Preproc" page

Watch a Video Presentation

This page is used to control any pre-processing that need to be applied to the volumes. You also use it to select the classes used in your AI.

Note:

The term "Classes" is used in AI terminology to specify the number of different tissues segmented. In sliceO, I use the term "TAG" to designate the same thing. The only difference is that in AI, the background (TAG-0) is also a valid class, while in sliceO I usually did not consider the background as such. So keep in mind that in this module, when we are talking about the number of classes, we are counting the background as a valid class.

Input TAG mapping

In this section, there is one box for each TAG present in the selected images. The title of the box (ex: "Map TAG-1 to") let you know what TAG is being mapped. Each of these can be mapped to a "Class" for the AI.

At first, there is as many classes as there are TAGs in the selected images. But since multiple TAGs can be mapped to the save class, some of the classes can be disabled if no TAG mapped to them. So, if there is a TAG in the images you do not want to use in the AI, just map it to the background.

This mapping is only used for training and testing. When predicting, only the grey values of the image is used.

Class mapping

Each classes used in the AI can be mapped to a TAG value. So, for example, if you map "Class 1" to the "TAG-1", when predicting the segmentation of an image, the tissue associated to Class 1 will be tagged in sliceO using TAG-1. You can also assign a label to that TAG. That label will be used in the AI reports and, if you use the AI to segment images, assigned to the corresponding TAG in the sliceO's interface.

This mapping is only used for predicting and testing.

Mapping status

An overview of the current classes and how they are mapped, along with their label and the ratio of pixels (with the associated weights) is presented here. The "Weight" values are used in the different "Weighted" metrics.

Voxel Resizing

The 3D AI need the voxels of all the volumes to be isotropic and of the same size. You specify the desired voxel size here and sliceO will take care of re-sizing all the volumes.

Patch Size & Overlap

Chances are your computer does not have enough memory to train an AI using the complete volumes. So, we will split the volumes in smaller "patches". You must define the size of these patches. Patches are cubic with x,y and z having the same dimentions. You can also specify an overlap for the patches.

Patch status

This window present you with the new resized resolution and number of patches for each volumes.

Intensity Normalization

The AI expect floating point pixels values between 0 and 1. While medical images use integer values. So, we need to "normalize" the pixel values.

You have 3 choices: "Min/Max", "Z-Score" or "GLI range".

The "Min/Max" normalization will normalize the GLI values so that the minimum value found in an image will be 0 and the maximum will be 1.

The "Z-Score" normalization will normalize the GLI values so that the mean value of an image will be at 0.5 and and the standard deviation is 0.5. The idea is that all the values within 1 standard deviation of the mean will be between 0 and 1.

The "GLI range" is mainly used for CT images. All HU values under the minimum will be assigned a value of 0, and all HU greater than the maximum will be assigned a value of +1 in the normalized images. All HU values in-between will be linearly mapped between 0 and 1.

Exit

Exit the configuration interface.

Help

Display this web page.

Note:

The background (TAG-0) is always enabled and is always mapped to Class 0 and always labelled "Background".

Note:

The Ratio for each class is computed as: Nb of voxels of a class / Nb of voxels in all classes.

The weight of each class is computed as: Sqrt( 1.0 / Ratio ) / tot

Where: tot = Sum ( sqrt( 1.0 / Ratio) ) for all classes.

Note:

When you select a "Weight" from the "Weights" page, the input/output mapping used to comput these weights will overwrite your current selection.

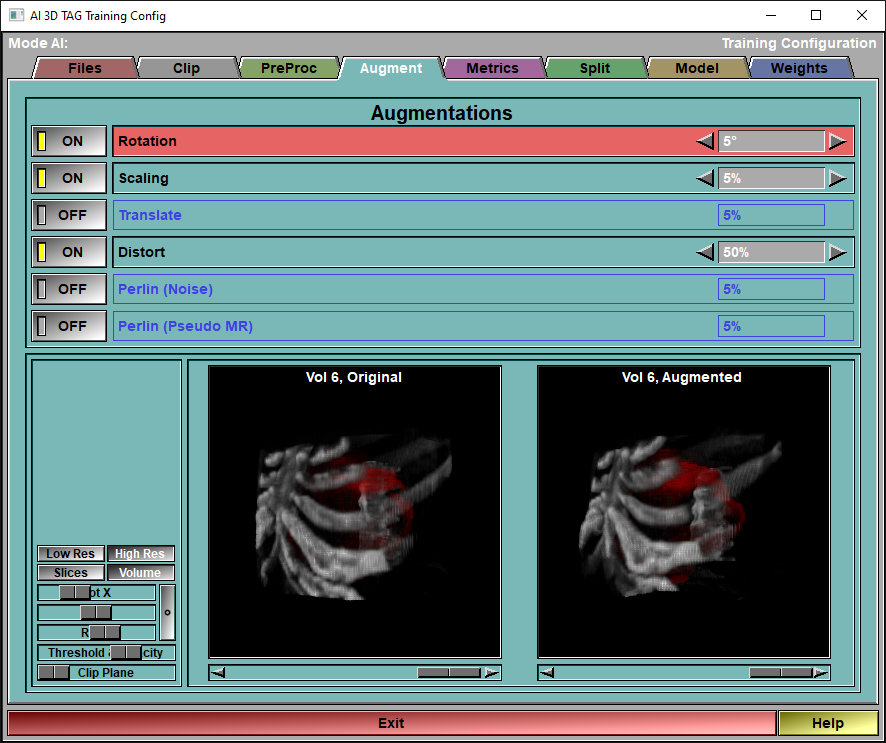

The config "Augment" page

Watch a Video Presentation

This page enable you to select and control the different augmentations that are applied to the images before they are used for training. The augmentations will be applied to all the "training" images before each epoch. Only the "Training" images are augmented, the images reserved for validation and testing are never augmented.


	Original Image	Rotated	Scaled	Translated


	Distorted	With Noise	With "Pseudo MR"

Augmentations

You can enable/disable the different augmentations, and specify the intensity of each of these from this interface.

You have access to 9 augmentations. Each of these is controlled by a selected value "val":

•Rotation:	A rotation of the image, centered on the center of the volume, of a random angle going from -val to +val will be applied around the 3 axis successively.
•Scaling:	A random scaling of the volume, ranging from -val % to +val %.
•Translate:	An translation of the image ranging from -val % to +val % of the maximum width of the volume will be applied to the 3 axis successively.
•Distort:	A grid of 8x8x8 bi-cubic splines are superimposed on the volume. Each of the control points of these splines are randomly jiggled by a factor scaled by the value selected in the interface. The resulting splines are used to distort the volume.
•Perlin (Noise):	We use a Perlin noise function of an high frequency to simulate noise in the volume.
•Perlin (Pseudo MR):	We use a Perlin noise function of a low frequency to simulate the intensity variations present in MR volumes.

Demo Original

The slider under the image is used to change the demo frame. All the volumes used for training are available.

Demo Augmented

The slider under the image is used to show the range of augmentation.

In normal training images, each time an image is augmented, a random value between -1 to +1 is assigned to each augmentation of each image.

In this demo however, we use the slider to show the range of possible augmentation. The slider simulate the random variable, with a range of -1 (complete left) to +1 (complete right).

Exit

Exit the configuration interface.

Help

Display this web page.

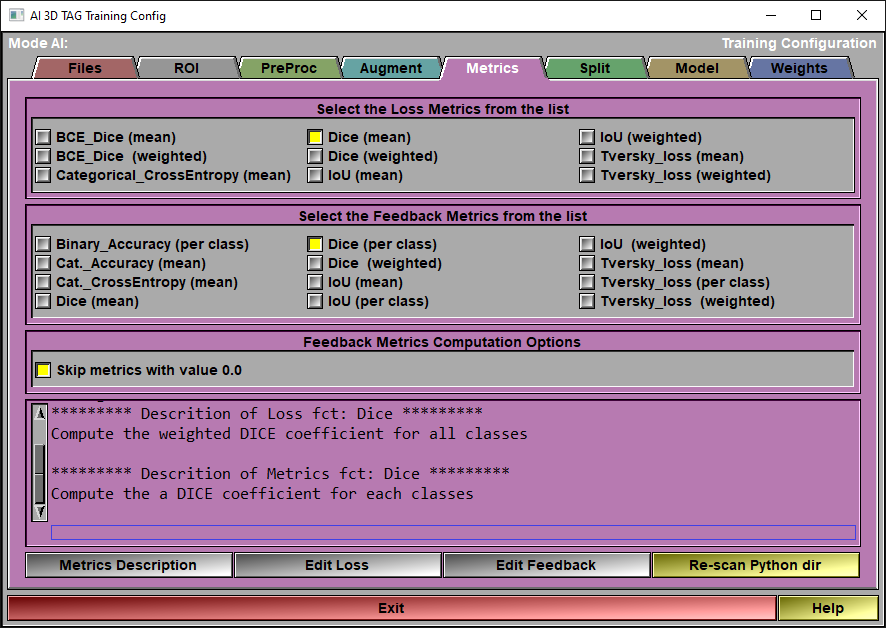

The config "Metrics" page

Watch a Video Presentation

When you train the AI, 2 sets of "metrics" are used: The Loss Metrics is the one used to compute the AI weights. The other group of metrics are just computed to give you an idea of what is going on. They are only there to provide you some feedback on the accuracy of the AI, they are optional and can be all off if you want.

At this time, you can only have 1 "Loss" metric when training your AI. You can however have as many "Feedback" metrics as you want.

These metrics will be reported back to you when you train your AI. They can also be used when you will select the weights you want to save for your AI. During training you will be presented with 2 graphs: One for the training and validation loss, and one for the training and validation values of the feedback metrics.


Loss Metrics	Select one of the metrics as a "Loss" function to train the AI.
Feedback Metrics	Select any metrics you want from this list to get additional information on the AI training progress.
Computation options	A lot of the patches do not contain any voxels for at least one of the classes use in training. If the predicted value for the same patch contain one or more voxels of that class, some of the metrics (such as Dice or Jaccard) will have a resulting value of "0". All these "0" values cause by single voxels skew the mean value of the metrics. You can select to disregard these "0" values in the mean computation. Be advised that although this look like a good deal, the absence of TAG data is an information that the training can use. If you remove all empty patches, the prediction may not know what to do in these regions later on.
Text Window	This window reports on the metrics selections and the description of each metrics.
Description	This will cause the description associated with each of the selected metrics to be displayed in the text window.
Edit Loss	The different metrics are all Python files that you can edit if you want. You can also add your own metrics. Just follow the prescribed syntax and add the python file of your new metric in the Python directory. Then click the "re-scan dir" to cause sliceO to re-analyze the directory and add your metrics. The syntax will be described later at the end of this section.
Edit Feedback
Re-scan dir
Exit	Exit the configuration interface.
Help	Display this web page.

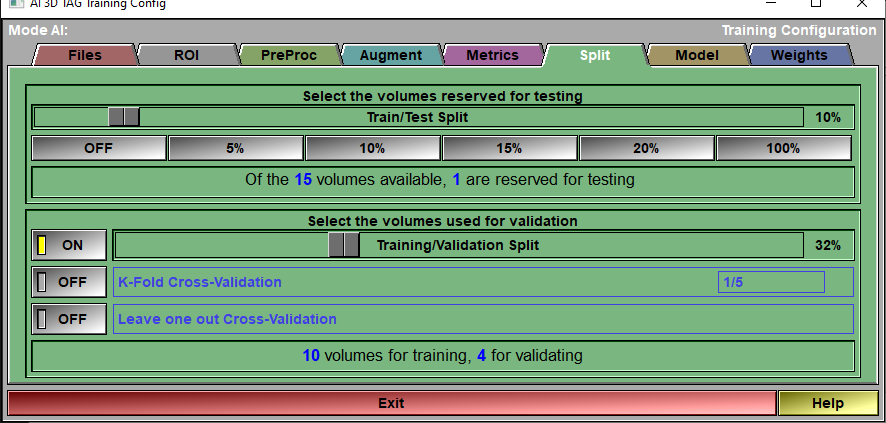

The config "Split" page

Watch a Video Presentation


Testing	A portion of the volumes you selected in the config "Preproc" page can be reserved for testing. If you do not want to do any testing with the loaded volumes, you can set this slider to 0% with the OFF button. If on the other hand you loaded volumes for testing only, set the slider to 100%.
Testing Status	Report on the number of available volumes
Validation	You have access to 3 validation methods: •Training/Validation Split. Probably the simplest, a part of the available volumes (those left after the volumes reserved for testing are removed) is reserved for validating the AI at each epoch. The same volumes are used for validation at each epoch. •K-Fold Cross-Validation. The available volumes are split in "n" groups using the ratio defined in the K-Fold interface. For example if the K-Fold is 1/5, then n=5. We do a complete training of all the epochs reserving the volumes of one of these groups validation. We then redo the complete training using another group for validation. We do this n times. After that, we assume that we have a good idea of the validation since by now all the volumes have been used for that, we do a last training without any validation. In the "Train Save" page, the graphs will show the mean value of the n+1 pass for training metrics and the n pass with validation for validation metrics. •Leave one out Cross-Validation. This is the extreme case of K-Fold where n is equal to the number of volumes.
Validation Status	Report the number of volumes that will be used for training and for validation.
Exit	Exit the configuration interface.
Help	Display this web page.

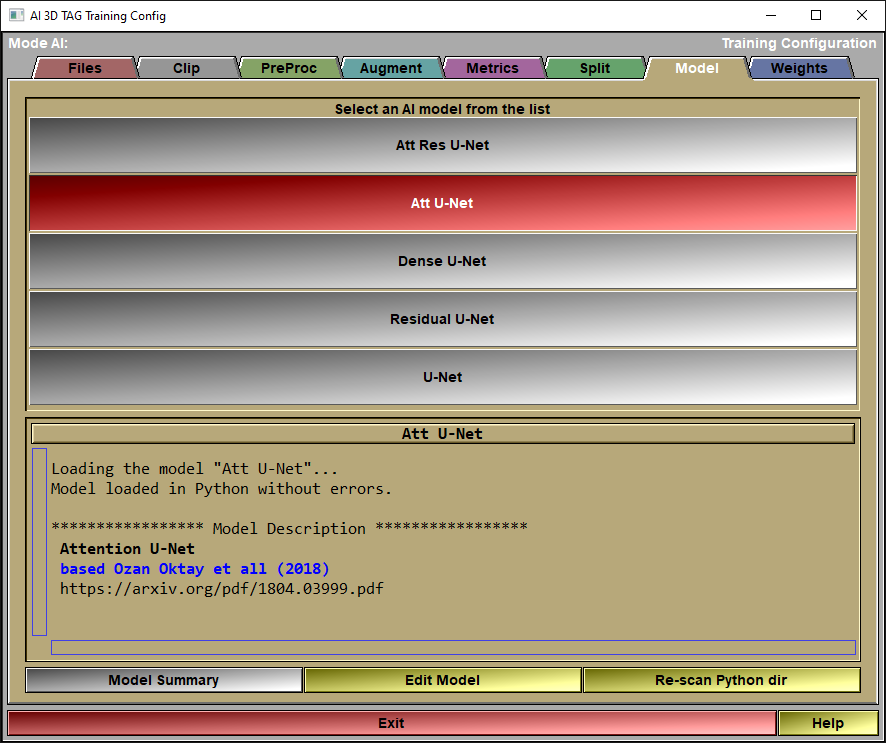

The config "Model" page

Watch a Video Presentation

In this page, you will select the model you want to use for the AI.


Model List	Select a model from the list.
Model Feedback	Information on the selected model will be displayed here.
Model Summary	Call the Keras function "Summary" for the selected model.
Edit Model	The different models are all Python files that you can edit if you want. You can also add your own models. Just follow the prescribed syntax and add the python file of your new model in the Python directory. Then click the "re-scan dir" to cause sliceO to re-analyze the directory and add your model. The syntax will be described later at the end of this section.
Re-scan Python dir
Exit	Exit the configuration interface.
Help	Display this web page.

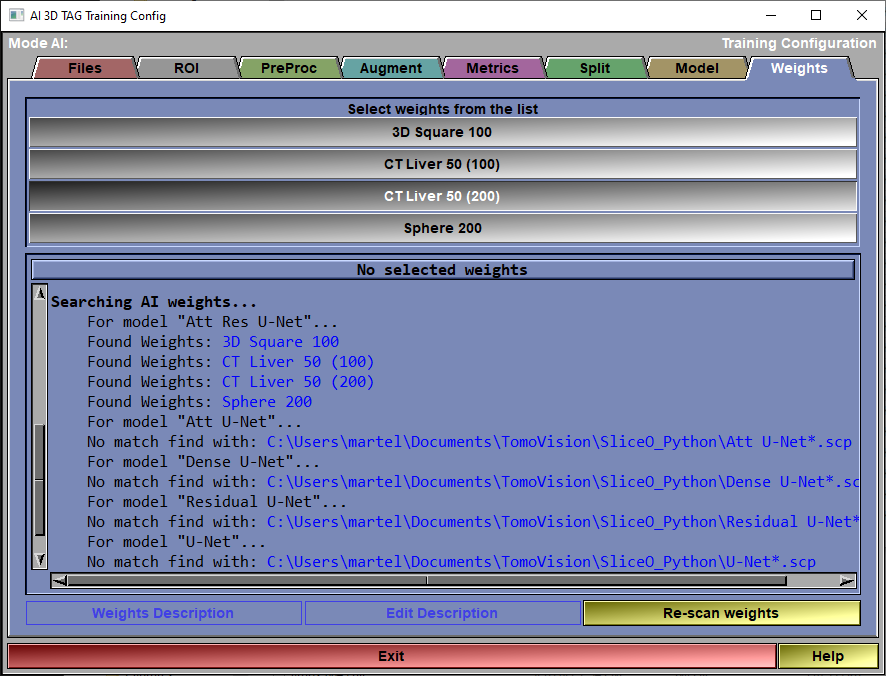

The config "Weights" page

Watch a Video Presentation


Weight List	This list will display all the available weights for the selected model. Select one of these from the list.
Weight Feedback	Information on the selected weightsl will be displayed here.
Weight Description	Cause the description of the weights to be displayed in teh text window.
Edit Description	The weight description is a text file assoicated with the weights. It has the same name as the weights but with the ".txt" extension. It can be edited with a simple text editor. If you click "Edit", this file will be opened in Notepad.
Re-Scan weights	Re-scan the directory if you have saved some new weights for this model.
Exit	Exit the configuration interface.
Help	Display this web page.

The "Train" page


Text Feedback
Config	Open the Configuration window
Train	Open the "Train" Window.
Save	Open the "Save" Window.

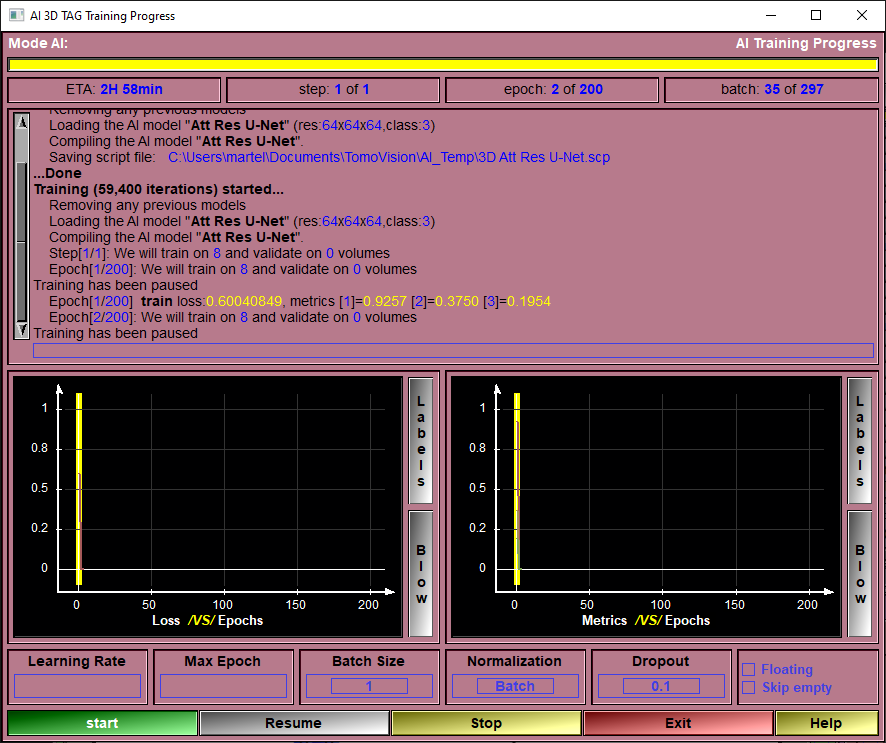

The Train "Train" page

Watch a Video Presentation

Once you used the config pages to select the files you want to train on, and you selected the preprocessing steps, the augmentations, the validation split and the model you want to use, you are ready to start training your model to obtain the AI weights.

This is the page that will enable you to train the AI.

The only things that remain for you to select are the learning rate, the number of epochs and the batch size. After that, you click on "Train" and wait (and wait... and wait...) for the results!

Once started, the training will:

- Pre-load all the images used for training and validation in memory.

Then, for each step it will:

- Reset or pre-load the weights (if you selected weights).

- Make a scrambled list of the images.

Then, for each epoch it will:

- From the scrambles list, select the files used for training and augment them.

- Call the Keras function "train_on_batch" for the training images.

- Call the Keras function "test_on_batch" for the validation images.

- Report the results of this epoch and save the current weights, the current metrics and a script associated with these.

The number of "steps" is dependant on the validation technique. A simple Train/Validation split us done in a single step. K-Fold and Leave-one-out cross validation require multiple steps.

Note:

The first call to "train_on_batch" is always longer than the others. Do not be allarmed if the red dot in the progress bar stop for a few secconds.

Note:

The "ETA" information is computed at the end of each epoch. So you need to wait for at least one epoch to finish before having an idea of how long the complete training will take.

Note:

If you stop the training, or if the computer (or sliceOmatic) crash. You will have the option to re-start the process from where it stopped the next time you press "Start"


Progress Bar	Report on the training progression.
ETA	Estimated time of completion (computed after each epoch).
Step Feedback	Current step number.
Epoch Feedback	Current Epoch number.
Batch Feedback	Currently processed batch.
Text Feedback	textual information about the training progression.
Loss Graphic	A graphic showing the tarining and validation loss values as a function of the epochs.
Validation Graphic	A graphic showing the training and validation values of all the selected feedback metrics
Learning Rate	The learning rate used in training the AI. the default value is 0.001
Max Epoch	The number of epoch used for the training.
Batch Size	The number of images used in each training and testing batchs. If the AI failed becuase of a lack of GPU memory, you can decrease this value.
Normalization	The AI need the values of the training dataset to be close to the range "-1" to "1". But a lot of the model's computations will cause the values to drift from this range. You can select to "Normalize" the data at each step of the model. You have the choice of 3 normalization modes: Batch Group Instance The "Normalization" value is placed in the system variable: "$AI_NORMALIZATION" and is accessible to the model. This is explained further down.
Dropout	A technique to help the training to converge is to "drop" a number of the computed weights at each step of the computation. A "dropout" of 0.3 for example will reset 30% of the weights to zero. This help prevent the training from converging toward a false local minima. The "Dropout" value is placed in the system variable: "$AI_DROPOUT" and is accessible to the model. This is explained further down.
Floating	When a volume is "split" in patches, the patches cover a region that is always larger than the original volume. For example a 256x256x256 volume computed with a 48x48x48 patches will be subdivided using 6x6x6 patches. The patches cover 6X48 = 288 voxels. There will be a 16 voxel border around the original volume. If you enable the "floating" option, the origin of each patches will have a random offset of up to 16 voxels.
Skip empty	Some patches do not contain any of the target classes (appart from class-0, the background). You may chose to disregard these patches when training.
Start	Start the training.
Pause/Resume	You can pause and resume the training.
Stop	Stop the training.
Exit	Exit the "Training" interface.
Help	Display this web page.

The Train "Save" page

Watch a Video Presentation

After having trained your AI, you want to save the weights you just computed.

This page will show you the weights of all the epochs of the training. You need to select one of these and save it. It will then be transfered from the AI_Temp folder to the sub-folder of the selected model with the name you specified. A "description" file will also be saved along the weights in a file with the same name but with the ".txt" extension.

To help you select the optimal epoch for the weights, you have access to plots of the loss and feedback values along with their numerical values.


Epoch Selection	Select the desired epoch from the list.
Name	Name use for the saved weights. A default value is proposed, but you can change it as you which.
Description	The description associated with the saved weights. Again, a default value is proposed, but you can edit this test to your liking.
Epoch Feedback	Numerical values of the different metrics at the end of the selected epoch.
Loss Graphic	Plot of the training and validation loss as a function of the epochs. The yellow vertical bar represent the selected epoch.
Validation Graphic	Plot of the training and validation feedback metrics as a function of the epochs. The yellow vertical bar represent the selected epoch.
Save	Save the selected weights to the model's sub-folder.
Exit	Exit the "Save" interface.
Help	Display this web page.

The "Test" page

This page is used to test your AI against a reserved portion of the selected blocks.

The program will go through all the "test" blocks, and call the Keras "test_on_batch" function for each of them. It will report the different metrics for each blocks and once all the blocks are tested, compute the mean and standard deviation of each of the metrics.

These results will also be saved in a Excel compatible file in the AI_Temp directory.


Text Feedback
Config	Open the Configuartion window
Test	Open the "Test Progress" Window.

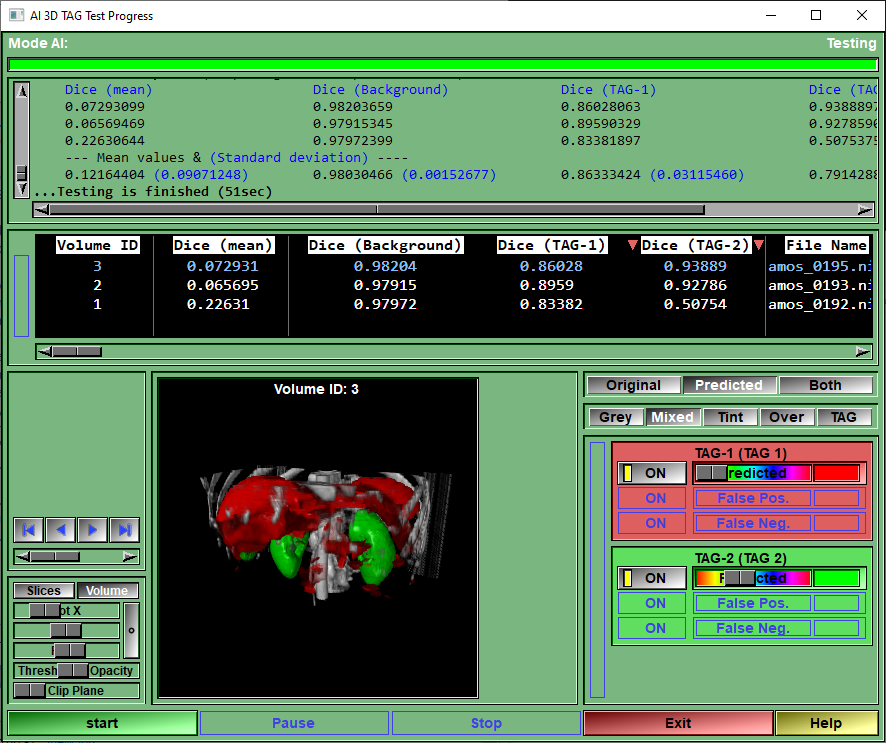

The Test "Test" page

Watch a Video Presentation

The reconstruction is done "by patches", but some patches may have no TAG in the original patch and and only 1 in the predicted patch. This will give strange values for most metrics (Dice and Jaccard will both be 0) and skew the mean values of the metrics. This is why I do a first pass where I use the patches to compute the predicted TAG data (and display the results per patches), then a second pass where I reconstruct the complete volumes (both original and predicted) and recompute the metrics on theses. We get more significant values that way. The values presented in the "Result box" are the values for the complete volumes.


Progress Bar	Show the progression of the testing
Text window	Report on the metrics for each patches/volumes Also display the computed mean and variance values for these metrics. In the first pass (computed with patches) the mean and variances will be for the patches of each volume. For the second pass (computed with volumes), the mean and variances are for all the volumes.
Results box	Once the testing is done, this box will display the numerical results of the different metrics computed from the complete volumes. The results can be sorted according to any of the presented columns. Just click on the column title to change the sort order. The line matching the test volume selected for display will be highlighted in blue. You can select any of the test volumes for display by clicking on its line.
Volume selection	You can display any of the volumes used for testing. the arrow keys will advance to the first volume, the previous volume, the next volume or the last volume. You can also use the slider to select volumes. The sort order of the volumes is defined in the Results box.
Display controls	The displayed volumes can be presented as a 3D volume or slice by slices. When showing a volume, the sliders can be used to rotate it (it can also be rotate directly from the display window). The "o" button re-set the rotations. The "Threshold" slider will have different funstions depending on the "Display Mode". And the "Clip Plane" slider cna be used to control a clip plane parallel to the display window. When showing the slices, the 3 sliders can be used to select the displayed slice in any of the 3 major axis.
Display window	Display the test volumes.
Source selection	You can display either the original segmentation, the predicted segmentation, or a mix of both. When using a mix of both, the false negative and false positive voxels will be brighter than the voxels that are a perfect match.
Display Mode	This is the same controls as the "2D Color Scheme" tool in sliceOmatic. the "F1" to "F4" keys can also be used as shortcuts.
TAG Color	For each TAG computed by the AI, you enable/disable and change the color of 3 group of pixels: •The pixels that have this TAG value in both the original and predicted images. •The pixels that have this TAG value in the predicted image only (False Positive) •The pixels that have this TAG value in the Original image only (False Negative)
Start	Start the computation of the tests.
Pause/Resume	Pause/resume the computation.
Stop	Stop the computation.
Exit	Exit this page.
Help	Display this web page.

The Predict page

This is the page where the magic happens!

From the AI list, select the AI you want to use. Alternatively, you can use the Config page to select a model and its assciated weights.

Select the desired images in sliceOmatic and click on the "Compute" button.

Note:

In AI terminology "Predicting" is the act of computing the segmentation of an image with an AI.


AI Selection	Select the desired AI from the list. This will automatically set the Model and the associated Weights.
Config	Open the Configuartion window
Compute	Open the "Predict Compute" Window.

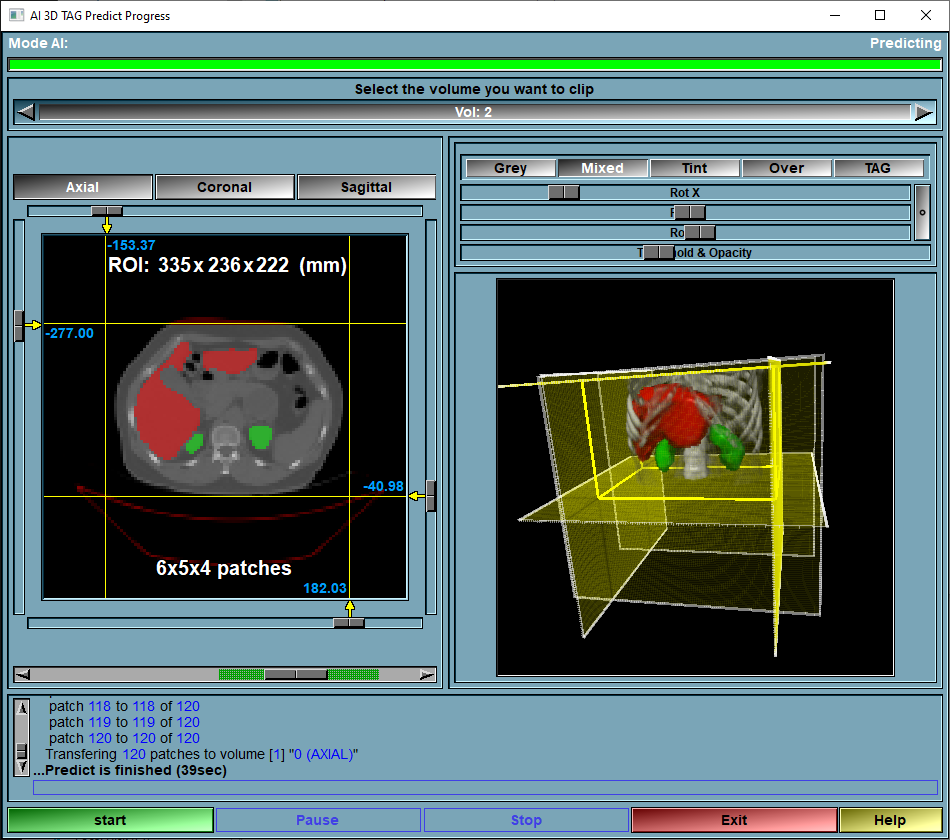

The Predict "Compute" page

Watch a Video Presentation

The goal of the AI module is to compute the segmentation automatically. This is done here.

The prediction module is the one that compute the segmentation. The segmentation is computed from the selected weights chosen in the "Predict" tab (or from the "Config" menu). The training has been done with patches of a specific size and overlap. The loaded volumes will also be subdivided in patches and the prediction will be done on each sequentially.

You can limit the ROI of the volume that will be used for the prediction with the interface.

If the selected weights have been trained with multiple classes and you only want to get the prediction for one tissue, you can use the "TAG Lock" tool to protect the other tissues.


Progress Bar	Show the progression of the predicting
Volume selection	If multiple volumes are loaded in sliceOmatic, you can select which of these will be displayed and clipped in the volume display window
Volume display 2D	Show the selected volume in 2D. From this window you can limit the volume that will be predicted.
Volume display 3D	Give a 3D view of the selected volume with a view of the clip planes used to limit the ROI used for prediction.
Text Feedbacks	Report some info on the progression of the prediction.
Start	Start the computation of the prediction.
Pause/Resume	Pause/resume the computation.
Stop	Stop the computation.
Exit	Exit this page.
Help	Display this web page.

The Python files

You can add your own metrics and models to this mode. You just have to follow the syntax described here:

The Python directory.

All the Python files used by sliceOmatic's AI module are stored in the Python directory. By default this is in "c:\Program Files\TomoVision\SliceO_Python". The location of this directory can be changed through the sliceOmatic's "Config" interface.

The Metrics Python files.

For my metrics files, I use names that start with "metrics ", but the name is not really important. What is important is that the file contain either a "metrics_2D" function, a "loss_2D" function or both.

You can have 3 types of metrics functions

The "Loss" metrics:

- The Loss functions compute a loss metrics used to train the AI.

The value of the loss function must decrease when we are approach perfect results.

The name of the loss function must be: "loss_3D_TAG" and have 2 arguments: "y_true" and "y_pred", 2 tensors, as described in Keras doc.

You must define a flag for the function: loss_3D_TAG.flag =... (The choices are between: "mean" "weighted" and "class" )

You must define the name of the function: loss_3D_TAG.__name__ =...

You must define a version for the function: loss_3D_TAG.__version__ =... (The version syntax is: "major.minor". ex: "2.3")

You must define the description of the function: loss_3D_TAG.description =...

import keras as kr

# ----------------------------------------------------

# The function must be called "loss_3D_TAG"

# ----------------------------------------------------

def loss_3D_TAG( y_true, y_pred ) :

# --- We simply call the Keras function ---

return( kr.losses.categorical_crossentropy( y_true, y_pred ) )

# ----------------------------------------------------

# Give a name for this metrics

# ----------------------------------------------------

loss_3D_TAG.__name__ = "Categorical CrossEntropy"

# ----------------------------------------------------

# Give a version for this metrics

# ----------------------------------------------------

loss_2D_TAG.__version__ = "2.1"

# ----------------------------------------------------

# Give a name for this metrics

# ----------------------------------------------------

loss_3D_TAG.description = "Call the Keras \"categorical_crossentropy\" function:\n" \

"Computes the crossentropy loss between the labels and predictions."

You can have 2 types of metrics: "global" or "Per class".

The "global" metrics:

- The Metrics functions compute a metrics used as feedback when training or testing.

The name of the metrics function must be: "metrics_3D_TAG" and have 2 arguments: "y_true" and "y_pred", 2 tensors, (as described in Keras doc.)

You must define a flag for the function: metrics_3D_TAG.flag =... (The choices are between: "mean" "weighted" and "class" )

You must define the name of the function: metrics_3D_TAG.__name__ =...

You must define a version for the function: metrics_3D_TAG.__version__ =... (The version syntax is: "major.minor". ex: "2.3")

You must define the description of the function: metrics_3D_TAG.description =...

from keras import backend as K

import AI_Var # --- AI_Var is the SliceOmatic module ---

def dice_coef(y_true, y_pred):

y_true_f = K.flatten(y_true)

y_pred_f = K.flatten(y_pred)

intersection = K.sum(y_true_f * y_pred_f)

a = K.sum(y_true_f)

b = K.sum(y_pred_f)

if ( (a + b) > 0 ) :

return (2.0 * intersection) / (a + b)

else :

return( 1.0 )

# ----------------------------------------------------

# The function must be called "metrics_2D"

# ----------------------------------------------------

def metrics_3D_TAG( y_true, y_pred ) :

dice=0

# --- I want the number of classes and their weights ---

num_classes = AI_Var.sliceO_Var_Get_Int("$AI_CLASS_NB")

fact = 1.0 / num_classes

# --- compute average Dice coef ---

for index in range(num_classes):

dice += fact * dice_coef(y_true[...,index], y_pred[...,index])

return dice

# ----------------------------------------------------

# Set the "Weighted" flag

# ----------------------------------------------------

metrics_3D_TAG.flag = "mean"

# ----------------------------------------------------

# Give a name for this metrics

# ----------------------------------------------------

metrics_3D_TAG.__name__ = "Dice Coeff (Mean)"

# ----------------------------------------------------

# Give a version for this metrics

# ----------------------------------------------------

metrics_3D_TAG.__version__ = "2.0"

# ----------------------------------------------------

# Give a name for this metrics

# ----------------------------------------------------

metrics_3D_TAG.description = "Compute the mean DICE coefficient of all classes"

The "per class" metric:

The name of the metrics function must be: "metrics_3D_TAG" and have 2 arguments: "class_idx" and "name", the index and name of the target class, for "Per class" metrics.

The "per class" metrics return a "global" metric function for the desired class.

You must define the name of the function: metrics_3D_TAG.__name__ =...

You must define a version for the function: metrics_3D_TAG.__version__ =... (The version syntax is: "major.minor". ex: "2.3")

You must define the description of the function: metrics_3D_TAG.description =...

You must also define a "flag" that must contain the string "class". (metrics_3D_TAG.flag = "class")

import tensorflow as tf

from keras import backend as K

import AI # --- AI is the SliceOmatic module ---

# ----------------------------------------------------

# The function must be called "metrics_3D_TAG"

# ----------------------------------------------------

def metrics_3D_TAG(class_idx: int, name: str, epsilon=1e-6):

def dice_coef(y_true: tf.Tensor, y_pred: tf.Tensor):

# Extract single class to compute dice coef

y_true_single_class = K.flatten(y_true[...,class_idx])

y_pred_single_class = K.flatten(y_pred[...,class_idx])

intersection = K.sum(y_true_single_class * y_pred_single_class)

a = K.sum(y_true_single_class)

b = K.sum(y_pred_single_class)

if ( (a + b) > 0 ) :

return (2.0 * intersection) / (a + b)

else :

return( 1.0 )

dice_coef.__name__ = f"dice_coef_{name}" # Set name used to log metric

return dice_coef

# ----------------------------------------------------

# Set the "Per Class" flag

# ----------------------------------------------------

metrics_3D_TAG.flag = "class"

# ----------------------------------------------------

# Give a description for this metrics

# ----------------------------------------------------

metrics_3D_TAG.__name__ = "Dice Coeff"

# ----------------------------------------------------

# Give a version for this metrics

# ----------------------------------------------------

metrics_3D_TAG.__version__ = "2.2"

# ----------------------------------------------------

# Give a name for this metrics

# ----------------------------------------------------

metrics_2D_TAG.description = "Compute the a DICE coefficient for each classes"

The Model Python files.

Again, I use the prefix "model " for my models files but the name is no important. The important is that the file contain a "model_3D_TAG" function.

That function receive 4 arguments: dim_x, dim_y, dim_z and num_classes. dim_x and y are the X and Y resolution of the images we will train this model with and num_classes is the number of classes. The function must define the layers of your model and return the "model" variable returned by the Keras "Model" function.

You must define the name of the function: model_3D_TAG.__name__ =...

You must define a version for the function: model_3D_TAG.__version__ =... (The version syntax is: "major.minor". ex: "2.3")

You must define the description of the function: model_3D_TAG.description =...

from tensorflow import keras

from keras.models import Model

from tensorflow.keras import layers

# =============================================================================

# ==================== Model 3D Function ======================================

# =============================================================================

# ----------------------------------------------------

# The function must be called "model_3D_TAG"

# ----------------------------------------------------

def model_3D_TAG( dim_x, dim_y, dim_z, num_classes ) :

inputs = keras.Input( shape=(dim_x,dim_y,dim_z,1,) )

# --- contraction ---

conv1 = Conv3D(32, 3, activation='relu', padding='same')(inputs)

conv1 = Conv3D(32, 3, activation='relu', padding='same')(conv1)

conv1 = BatchNormalization()(conv1)

pool1 = MaxPooling3D(pool_size=(2, 2, 2))(conv1)

conv2 = Conv3D(64, 3, activation='relu', padding='same')(pool1)

conv2 = Conv3D(64, 3, activation='relu', padding='same')(conv2)

conv2 = BatchNormalization()(conv2)

pool2 = MaxPooling3D(pool_size=(2, 2, 2))(conv2)

conv3 = Conv3D(128, 3, activation='relu', padding='same')(pool2)

conv3 = Conv3D(128, 3, activation='relu', padding='same')(conv3)

conv3 = BatchNormalization()(conv3)

pool3 = MaxPooling3D(pool_size=(2, 2, 2))(conv3)

conv4 = Conv3D(256, 3, activation='relu', padding='same')(pool3)

conv4 = Conv3D(256, 3, activation='relu', padding='same')(conv4)

conv4 = BatchNormalization()(conv4)

pool4 = MaxPooling3D(pool_size=(2, 2, 2))(conv4)

# --- middle ---

conv5 = Conv3D(512, 3, activation='relu', padding='same')(pool4)

conv5 = Conv3D(512, 3, activation='relu', padding='same')(conv5)

conv5 = BatchNormalization()(conv5)

# --- expansion ---

up6 = concatenate([Conv3DTranspose(256, 2, strides=2, padding='same')(conv5), conv4], axis=-1)

conv6 = Conv3D(256, 3, activation='relu', padding='same')(up6)

conv6 = Conv3D(256, 3, activation='relu', padding='same')(conv6)

conv6 = BatchNormalization()(conv6)

up7 = concatenate([Conv3DTranspose(128, 2, strides=2, padding='same')(conv6), conv3], axis=-1)

conv7 = Conv3D(128, 3, activation='relu', padding='same')(up7)

conv7 = Conv3D(128, 3, activation='relu', padding='same')(conv7)

conv7 = BatchNormalization()(conv7)

up8 = concatenate([Conv3DTranspose(64, 2, strides=2, padding='same')(conv7), conv2], axis=-1)

conv8 = Conv3D(64, 3, activation='relu', padding='same')(up8)

conv8 = Conv3D(64, 3, activation='relu', padding='same')(conv8)

conv8 = BatchNormalization()(conv8)

up9 = concatenate([Conv3DTranspose(32, 2, strides=2, padding='same')(conv8), conv1], axis=-1)

conv9 = Conv3D(32, 3, activation='relu', padding='same')(up9)

conv9 = Conv3D(32, 3, activation='relu', padding='same')(conv9)

conv9 = BatchNormalization()(conv9)

# Add a per-pixel classification layer

outputs = Conv3D( num_classes, 1, activation="softmax", padding="same" )(conv9)

# Define the model

model = Model( inputs, outputs )

return model

# ----------------------------------------------------

# Give a name for this model

# ----------------------------------------------------

model_3D_TAG.__name__ = "U-Net"

# ----------------------------------------------------

# Give a version for this model

# ----------------------------------------------------

model_3D_TAG.__version__ = "2.0"

# ----------------------------------------------------

# Give a name for this model

# ----------------------------------------------------

model_3D_TAG.description = "Standard\xF1 U-Net\xF0 model as described in:\n" \

"\xF1\001U-Net: Convolutional Networks for Biomedical Image Segmentation.\xF0\002\n" \

"Olaf Ronneberger, Philipp Fischer, Thomas Brox.\n" \

"MICCAI 2015"

The Normalization and Dropout parameters

When using the Normalization parameter in your models, you must first access it from the sliceOmatic system variable: "$AI_NORMALIZATION". This integer value will be either 0:no normalization, 1:batch, 2:group or 3:instance.

The dropout is a float value accessed from the "AI_DROPOUT" sliceOmatic variable.

Here's is the suggested syntax:

# --- for normalization and dropout ---

from keras.layers import BatchNormalization, Dropout

import tensorflow_addons as tfa

# --- AI_Var is the SliceOmatic module ---

import AI_Var

# -----------------------------------------------------#

def normalize(input, mode):

if ( mode == 1 ) :

return BatchNormalization()(input)

if ( mode == 2 ) :

return tfa.layers.GroupNormalization(groups=1)(input)

if ( mode == 3 ) :

return tfa.layers.InstanceNormalization()(input)

return input

# -----------------------------------------------------#

def model_3D_TAG( dim_x, dim_y, dim_z, num_classes ) :

AI_Norm = AI_Var.sliceO_Var_Get_Int("$AI_NORMALIZATION")

AI_Drop = AI_Var.sliceO_Var_Get_Float("$AI_DROPOUT")

...

inputs = keras.Input( shape=(dim_x,dim_y,dim_z,1,) )

conv11 = Conv2D(32, 3, activation='relu', padding='same')(inputs)

if ( AI_Norm > 0 ) :

conv11 = normalize(conv11, AI_Norm)

if ( AI_Norm > 0 ) :

conv11 = normalize(conv11, AI_Norm)

...

Note:

For the "Group" and "Instance" normalization I use the Tensorflow addons librarie. This librarie has been deprecated and these normalisation are now part of Tensorflow. However, at this time, these new versions of Tensorflow do not use the Cuda libraries when running on Windows! So, I am stuck using an older version of Tensorflow (2.9.1) that does not contain the normalization. Hence the Tensorflow addons.

The Test Python files.

By default, I test for the presence of Python, Numpy, Tensorflow and Keras. If you use another module in your Python code, you can add a new test file. SliceO will use this to test that the desired module is indeed loaded when it start the AI module.

The file must contain a "version" function that return the version number for the target module.

It must also contain a "name" and a "version" definition.

import numpy as np

# ----------------------------------------------------

# The function must be called "version"

# ----------------------------------------------------

def version():

print( "numpy vers: ", np.__version__ )

return np.__version__

# ----------------------------------------------------

# Give a name for this test

# ----------------------------------------------------

version.__name__ = "NumPy vers: "

# ----------------------------------------------------

# Give a version for this test

# ----------------------------------------------------

version.__version__ = "2.0"

Accessing sliceOmatic variables from Python.

You can access any of the sliceOmatic variables from your python code.

The functions for this are:

sliceO_Var_Get_Int( Variable_Name )

sliceO_Var_Get_Float( Variable_Name )

sliceO_Var_Get_Str( Variable_Name )

return one (or an array of) value(s), depending on the variable.

sliceO_Var_Set_Int( Variable_Name, Value )

sliceO_Var_Set_Float( Variable_Name, Value )

sliceO_Var_Set_Str( Variable_Name, Value )

Assign the value "Value" to the variable "Var_Name". At this time only variable with one value can be "Set" (no arrays).

From the Display Area

There is no display area interaction specific to this mode.

From the Keyboard

The following commands are mapped to keyboard keys as a shortcut:


	Key map	Action

	F1	Set the color scheme mode for all windows: F1=Grey, F2=Mixed, F3=Tint and F4=Over
	F2
	F3
	F4

From the Command Line

System Variables defined in this library:

$AI_RES_X	(I₁₆)
$AI_RES_Y	(I₁₆)
$AI_RES_Z	(I₁₆)
$AI_CLASS_NB	(I₁₆)
$AI_CLASS_LABEL	A(W)	* $AI_CLASS_NB
$AI_CLASS_RATIO	A(F₃₂)	* $AI_CLASS_NB
$AI_CLASS_WEIGHTS	A(F₃₂)	* $AI_CLASS_NB

Tversky metrics parameters:

	$AI_TVERSKY_ALPHA	(F₃₂)
	$AI_TVERSKY_BETA	(F₃₂)

Normalization and Dropout parameters:

	$AI_NORMALIZATION	(U₈)
	$AIDROPOUT	(F₃₂)

TAG re-mapping:

$AI_TAG_MAP_IN_NB	(I₃₂)
$AI_TAG_MAP_IN_VAL	A(U₈)	* $AI_CLASS_NB
$AI_TAG_MAP_OUT	A(U₈)	* $AI_CLASS_NB

Training Parameters:

	$AI_TRAIN_STEP_MAX	(I₃₂)
	$AI_TRAIN_STEP_CUR	(I₃₂)
	$AI_TRAIN_EPOCH_MAX	(I₃₂)
	$AI_TRAIN_EPOCH_CUR	(I₃₂)
	$AI_TRAIN_BATCH_MAX	(I₃₂)
	$AI_TRAIN_BATCH_CUR	(I₃₂)
	$AI_TRAIN_LR	(F₃₂)
	$AI_TRAIN_EARLY_FLAG	(I₃₂)
	$AI_TRAIN_EARLY_NB	(I₃₂)

Python Variables:

	$PYTHON_FLAG	(U₃₂)
	$PYTHON_MODULE_PATH	(W)
	$PYTHON_INTERPRETER_PATH	(W)
	$PYTHON_SLICEO	(P)
	$PYTHON_TEMP	(W)

Commands recognized in this mode:

Python: path "path"

Python: temp "path"

A3T: file read "path"

A3T: file "path" (on|off)

A3T: preproc resolution x [y]

A3T: preproc modality value

A3T: preproc min value

A3T: preproc max value

A3T: preproc norm ("HU" | "min-max" | "z-score")

A3T: class nb value

A3T: class in id value

A3T: class out id value

A3T: class label id "label"

A3T: augment "name" (on|off) value

A3T: metrics loss "name"

A3T: metrics feedback clear

A3T: metrics feedback "name"

A3T: split test value

A3T: split mode value

A3T: split split value

A3T: split kfold value

A3T: model cur "name"

A3T: model modality value

A3T: model class value

A3T: weights cur "name"

A3T: weights load

The main "AI with Python" interface has 3 tabs: Train, Test and Predict. Each of theses has a "Config" button that will open the configuration menu, and one (or more) "Compute" button that will open the appropriate page.

Each of the 3 main pages of the "AI Python" interface has a "Config" button. This will open the configuration menu. Depending on the main pages you are in, the configuration menu will have between 2 and 7 sub-pages. For training, you need access to all the pages, for "Use", you only need 2.

The config "File" page

This page is used to specify the images that will be used either for training or testing your AI.

Progress bar

Show the progress of the program when analyzing directories

Add slices

Files can be added to this list in 3 different ways:

Simply drag&drop a directory on the interface. The program will recursively parse this directory and all its sub-directories. Each directories that contain segmented images will be add as a separate line in the interface or use the "From Path" or "From Browser" options.

From Path

From Browser

Clear List

Dir List

Group 3D Using

Volume List

Volume preview

Files status

Show the number of volumes found in the different selected directories. Also, the different TAGs found in these volumes (along with their prevalence) will be displayed.

Exit

Exit the configuration interface.

Help

Display this web page.

The config "ROI" page

; -----------------------------------------------------------------------------

; --- AI 3D Clip file ---

; --- created: 13 Oct 2024 14:53 ---

; -----------------------------------------------------------------------------

A3T: clip x 9.50 73.50

A3T: clip y 9.50 73.50

A3T: clip z 31.50 95.50

Volume selection

Use this tool to select the volume you want to clip

ROI window

the clip planes can be adjusted with the left/right/top and bottom sliders. Change the view from Axial to Coronal or Sagittal to access the clip planes in the other axis. The slider at the bottom is used to scroll through the slices of the volume.

Volume view

A 3D ray-traced view of the volume is also available.

Volume status

Information on each of the loaded volumes will be displayed here.

The information is presented on 3 lines:

- The Volume ID (defined by the order the volumes where loaded in the AI module) along with the percentage of the original volume present in the ROI.

- The original FoV of the volume

- The clipped ROI dimensions. If no clip planes are defined, the ROI is the same as the original FoV.

The background of the current volume is presented in a darker grey than the others.

You can select the current volume by clicking on it's values in this window

The color of the numerical values have a meaning: Red is used for the maximim value in any of the 3 directions.

Exit

Exit the configuration interface.

Help

Display this web page.

The config "Preproc" page

This page is used to control any pre-processing that need to be applied to the volumes. You also use it to select the classes used in your AI.

Input TAG mapping

Class mapping

Mapping status

Voxel Resizing

Patch Size & Overlap

Patch status

Intensity Normalization

Exit

Help

Display this web page.

The background (TAG-0) is always enabled and is always mapped to Class 0 and always labelled "Background".

The Ratio for each class is computed as: Nb of voxels of a class / Nb of voxels in all classes.

The weight of each class is computed as: Sqrt( 1.0 / Ratio ) / tot

Where: tot = Sum ( sqrt( 1.0 / Ratio) ) for all classes.

When you select a "Weight" from the "Weights" page, the input/output mapping used to comput these weights will overwrite your current selection.

The config "Augment" page

Original Image

Rotated

Scaled

Translated

Distorted

With Noise

With "Pseudo MR"

Augmentations

You can enable/disable the different augmentations, and specify the intensity of each of these from this interface.

You have access to 9 augmentations. Each of these is controlled by a selected value "val":

A random scaling of the volume, ranging from -val % to +val %.

An translation of the image ranging from -val % to +val % of the maximum width of the volume will be applied to the 3 axis successively.

A grid of 8x8x8 bi-cubic splines are superimposed on the volume. Each of the control points of these splines are randomly jiggled by a factor scaled by the value selected in the interface. The resulting splines are used to distort the volume.
