This mode can be used to view 1D database (from CSV files).
CSV (Comma Separated Values) files are database files containing rows of cells with text values. The text in these cells usually represent numerical values. SliceOmatic will present them in columns. These columns will have header. If there is a hierarchy in the header information, sliceOmatic will use it to group columns and offer the possibility to collapse all the columns of the same group.
The columns headers and the data cells are presented in 2 boxes that can be scrolled.
The header and data will be presented using colors:
|
|
|
Normal data is presented on a grey background. |
|
|
|
Empty cells are presented in yellow. |
|
|
|
Cells that contain an invalid (Not a Number) value have a red background. |
|
|
|
Cells that contain multiple values have a red background. |
|
|
|
Cells that contain text have a brown background. |
|
|
|
Index columns have a cyan background. |
|
|
|
Data columns (in AI modes) have a green background. |
|
|
|
Class columns (in AI modes) have a blue background. |
|
|
|
|||
From the Graphic Interface
|
|
|
|
|
There is no interaction with the interface
|
From the Display Area

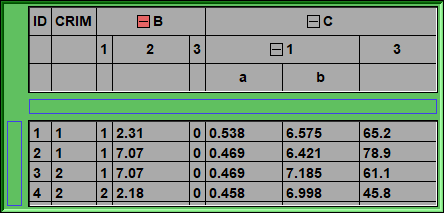

If sliceOmatic was able to establish that some columns are part of the same group, then can expand/collapse this group of columns using the + or - before the groups' name. The displayed values for data cells associated with a collapsed group will be "---".
|
|
|
|
From the Keyboard
There is no keyboard interface specific to this mode.
From the Command Line
There are no command lines specific to this mode.
