Save Geometry

The whole idea of the ultrasound modes is to create a 3D geometrical model of the ultrasound dataset. This is where you save the reconstructed 3D geometry.

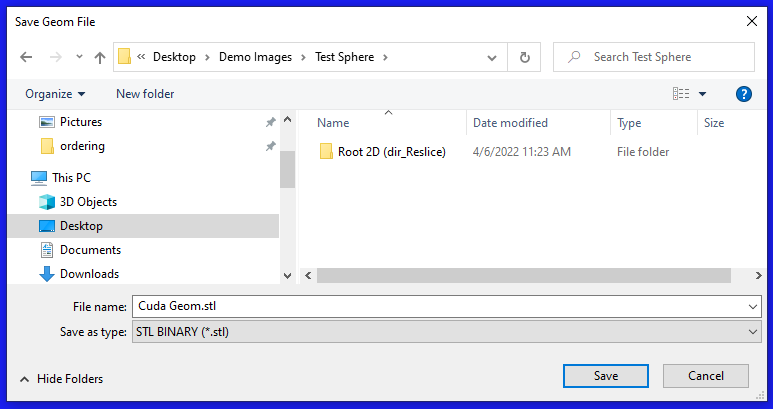

The program will pop-up a "save" window where you can select the file's name and path along with the desired file format.

The supported export formats are:

•MOVIE.BYU (.mov)

•Autocad DXF (.dxf)

•Wavefront OBJ (.obj)

•VRML (.wrl)

•STL ASCII (.stl)

•STL binary (.stl)

License:

If you do not have the sliceOmatic or the Ultrasound Module license, this button will be disabled.

Note:

Saving the geometry will consume one "Geometry" token for each new dataset you export.

Note:

This button is only available if you have create a 3D geometry. Accessing any of the ultrasound modes will automatically create a 3D geometry.
