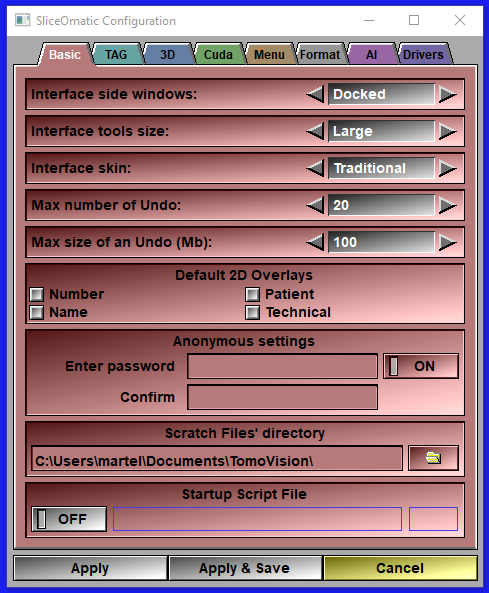

Floating Menus

The 3 windows of the control area can be made floating or docked (the default).

Tool Size

You can select the size of the interface’s tools. If you are using a screen resolution of 1024x768 or less, it may be advantageous to use smaller interface tools. By default the large tools size is selected.

Interface Skin

SliceOmatic use a lot of colors in its interface.  You can change the default for these.  From no colors (Grey), to very saturated colors (Flashy).

Undo Number

You can select the maximum number of Undo that the program keeps in memory. In order to undo most of the operations, the program has to keep a copy of the images in memory. If your system is running low on memory, it might be a good idea to reduce the number of Undos. By default the number of Undo is set to its maximum value: 20.

Undo Size

Each individual Undo operation is limited in size. If an operation causes the associated Undo to be bigger than that size, a choice will be given to the user: cancel the operation, increase the maximum size of an Undo, or forgo the undo for the current operation (this choice will also remove the current Undo for any previous operations).

2D Overlays

The Overlays display information about the image, its patient and the acquisition modality. You can select which of these are displayed by default. You can always change the overlays through the “Overlay Tool”. By default the “Name” overlay is selected.

Anonymous

In many cases of blind studies, it is necessary that the user do not see the patient's name and ID. When the "Anonymous" flag is set, the program will not display any information on the patient. To set the flag, you need to enter a password. The same password will be necessary to remove the flag.

Scratch File

SliceOmatic creates temporary files, error log files and image snapshot files. You can specify in which directory you want these to be created. By default the scratch directory is located in the "TomoVision" sub-folder of your "Documents" directory “C:\Users\Your_name\Documents”.

Startup Script

You can have sliceOmatic execute a script at startup. This script usually contains some of your preferences such as TAG labels, segmentation threshold values, 3D light positions... By default the Startup Script is disabled.
