ROI



This class enables you to select a portion of the frames to work on.

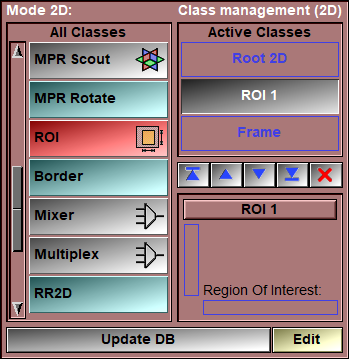

Add the "ROI" class in the "Class management"

mode and press "Update DB" to activate the new class.

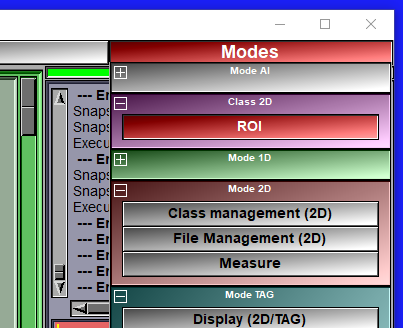

A new "ROI" mode will be available from the "Mode" menu

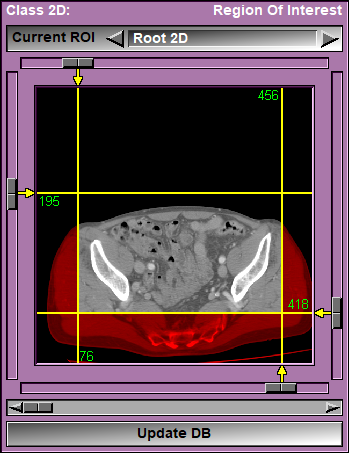

From the Graphic Interface







Instance selection

Select which of the instances of the class you want to work on.



Left/Right/

Top/Bottom

sliders

Move these sliders to select the region of interest. In the preview image, portions of the frames that are outside the ROI will be displayed with only their red component.



Slice preview

You can see a preview of the region of interest applied to each frame. The slider lets you select the frames in this class.



Update DB

Recompute the database taking into account the settings you selected.





From the Display Area



There is no display area interaction specific to this class.





From the Keyboard



There is no keyboard interface specific to this class.





From the Command Line



There is no command line for this class.
