Path



This class enable you to add sort the DB tree according to the path of the TAG files.



It is used if you have the same GLI image segmented multiple times and want to compare them.  For example in repeatability studies.  You can read the same GLI image in sliceOmatic but only if the associated TAG either have different suffix, or are from different directories.  Since the GLI files are the same, the normal sorting classes ("Study", "Series" and "DICOM Tree") are unable to differentiate them.  You can use "Path" and "Suffix" for this.



The Path class is enabled through the 2D Mode: "DB Class management" interface.  If this class is placed in the DB tree, there will be one instance of this class per TAG file directory.



It is usually placed immediately after the root class and is used to differentiate between the studies.

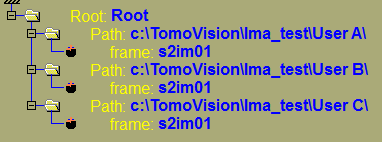

For example, let us say that we to have 3 different users segment the same slice.  We can create 3 directory ("User A", "User B" and "User C") and copy the GLI in each of these, then have each user segment the GLI from one of the directories. You can then read the 3 GLI and use the "path" class to differentiate each. The resulting database tree will be:







From the Graphic Interface



This class does not have a graphic interface.





From the Display area



There is no display area interaction specific to this class.





From the Keyboard



There is no keyboard interface specific to this class.





From the Command Line



There is no command line for this class.
