TomoVision_Tools: Tabs

The Tabs class enable you to draw ... in the interface.

The flags that affect the tabs are:

	OUTIL_INVISIBLE	// no graphics
	OUTIL_DISABLE	// no select (but graphics OK)
	OUTIL_VERTICAL	// the name is drawn vertically
	OUTIL_EMPTY	// no fill
	OUTIL_OUTLINE	// border as blue outline
	OUTIL_NO_3D	// flat fill
	OUTIL_NO_BORDER	// do not draw the outside box
	NAME_V_CENT NAME_TOP NAME_BOTTOM	// vertical position of the name in the tool
	NAME_H_CENT NAME_LEFT NAME_RIGHT	// Horizontal position of the name in the tool

The Tabs that are specific to the valuators class are:

	float Cur_Value ;	// current value of the selected tab
	short Page_Y ;	// height of the pages (including the tabs)
	TabItems **Item ;	// list of pages associated with the tabs.

The methods that are specific to the Tabs are:

	int Grow( int size, int flag=0 ) ;	// Adjust the number of tabs
	int Read( void ) ;	// return the value of the tab under the cursor or -1
	void Page( int dim_y=0 ) ;	// Clear the content of the page

An example of the usage of the Tabs class is given in the Samples\Demo Tools\Tabs demo directory. the resulting interface for this demo look like this:

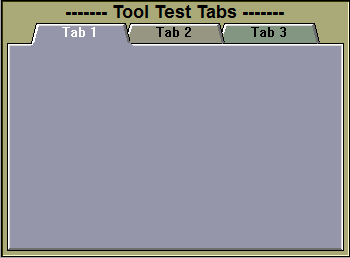

The tool_test_tabs_ctrl.cpp file from the Tabs demo

...

// --- Interface tools ---

static Boxs box_box ;

static Tabs tab ;

static char *list_tab[] = { "Tab 1", "Tab 2", "Tab 3" } ;

static short Page_Pos_X ;

static short Page_Pos_Y ;

static short Page_Dim_X ;

static short Page_Dim_Y ;

// --- For Tab 1 option ---

void Tab_1_Init( void ) ;

int Tab_1_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color ) ;

void Tab_1_Draw( HWND wnd ) ;

int Tab_1_Click( HWND wnd, int up_down, short x, short y ) ;

void Tab_1_Motion( HWND wnd, int up_down, short x, short y ) ;

void Tab_1_Scroll( HWND wnd, int count, short x, short y ) ;

int Tab_1_Key( HWND wnd, int key, short x, short y ) ;

// --- For Tab 2 option ---

void Tab_2_Init( void ) ;

int Tab_2_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color ) ;

void Tab_2_Draw( HWND wnd ) ;

int Tab_2_Click( HWND wnd, int up_down, short x, short y ) ;

void Tab_2_Motion( HWND wnd, int up_down, short x, short y ) ;

void Tab_2_Scroll( HWND wnd, int count, short x, short y ) ;

int Tab_2_Key( HWND wnd, int key, short x, short y ) ;

// --- For Tab 3 option ---

void Tab_3_Init( void ) ;

int Tab_3_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color ) ;

void Tab_3_Draw( HWND wnd ) ;

int Tab_3_Click( HWND wnd, int up_down, short x, short y ) ;

void Tab_3_Motion( HWND wnd, int up_down, short x, short y ) ;

void Tab_3_Scroll( HWND wnd, int count, short x, short y ) ;

int Tab_3_Key( HWND wnd, int key, short x, short y ) ;

// --- Pointers to the interface functions ---

static void (*Func_Init[])(void) = { Tab_1_Init,

Tab_2_Init,

Tab_3_Init } ;

static void (*Func_Draw[])(HWND wnd) = { Tab_1_Draw,

Tab_2_Draw,

Tab_3_Draw } ;

static int (*Func_Resize[])(HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color )

= { Tab_1_Resize,

Tab_2_Resize,

Tab_3_Resize } ;

static int (*Func_Click[])(HWND wnd, int click, short x, short y) = { Tab_1_Click,

Tab_2_Click,

Tab_3_Click } ;

static int (*Func_Key[])(HWND wnd, int key, short x, short y) = { Tab_1_Key,

Tab_2_Key,

Tab_3_Key } ;

static void (*Func_Scroll[])(HWND wnd, int count, short x, short y) = { Tab_1_Scroll,

Tab_2_Scroll,

Tab_3_Scroll } ;

static void (*Func_Motion[])(HWND wnd, int click, short x, short y) = { Tab_1_Motion,

Tab_2_Motion,

Tab_3_Motion } ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short Title_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim_Big + 2 // title at top of tool

+ Space_Dim + Title_Dim_Big // tabs

+ 200 // content of the Tab pages

+ Space_Dim ;

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Tabs -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

short Title_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Tabs:

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + box_box.Dim_Y - 2*Title_Dim_Big ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = Title_Dim_Big ;

tab.Flag = NULL ;

tab.Pos_X = p_x ;

tab.Pos_Y = p_y ;

tab.Dim_X = d_x ;

tab.Dim_Y = d_y ;

// --- vertical size of the pages (including tabs) ---

tab.Page_Y = box_box.Dim_Y - Title_Dim_Big - Space_Dim ;

// --- initialize the tabs the first time only ---

if ( ! tab.Item ) {

int nb_item = (sizeof list_tab) / sizeof(char *) ;

tab.Grow( nb_item ) ;

for ( int i=0; i < nb_item; i++ ) {

tab.Item[i]->Flag = NULL ;

tab.Item[i]->Set_Name( list_tab[i] ) ;

}

// --- assign a different color for each tab ---

tab.Item[0]->color.set( 150, 150, 170 ) ;

tab.Item[1]->color.set( 170, 170, 150 ) ;

tab.Item[2]->color.set( 150, 170, 150 ) ;

}

tab.Init( wnd ) ;

// --- call resize for the content of this tab page ---

Page_Pos_X = box_box.Pos_X + 3*Space_Dim ;

Page_Pos_Y = box_box.Pos_Y + 3*Space_Dim ;

Page_Dim_X = box_box.Dim_X - 6*Space_Dim ;

Page_Dim_Y = box_box.Dim_Y - 2*Title_Dim_Big - 6*Space_Dim ;

(*(Func_Resize[tab.Cur_Value]))( wnd,

Page_Pos_X, Page_Pos_Y, Page_Dim_X, Page_Dim_Y,

tab.Item[tab.Cur_Value]->color ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- draw the tab container ---

tab.Draw() ;

tab.Page() ;

(*(Func_Draw[tab.Cur_Value]))( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Leave

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time the cursor leave your menu

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Leave( void )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

tab.Deselect() ;

return( 1 ) ;

}

// ============================================================================

// ----------------------------------------------------------------------------

// Function: Ctrl_Click

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the state

// of the mouse buttons has changed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Click( HWND wnd, int up_down, short x, short y )

{

// --- We only refresh the image when we release the button ---

if ( ! up_down ) {

return( 0 ) ;

}

// ------------------------------------------------

// We received a mouse click, now we try to find in

// which box the click was. For this we use the

// "select" method. If will tell us if the mouse

// is inside the box.

// ------------------------------------------------

if ( tab.Select( up_down ) ) {

// --- did we click on a new tab ? ---

int i = tab.Read() ;

if ( i >= 0 ) {

// --- change the current tab ---

tab.Cur_Value = i ;

tab.Adjust() ;

// --- clear the page with the current color ---

tab.Page() ;

// --- resize the content of this tab page ---

(*(Func_Resize[tab.Cur_Value]))( wnd,

Page_Pos_X, Page_Pos_Y, Page_Dim_X, Page_Dim_Y,

tab.Item[tab.Cur_Value]->color ) ;

(*(Func_Init[tab.Cur_Value]))() ;

}

return( 1 ) ;

}

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Key

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// key (int) code of the activated key

// x, y (int) current cursor position

// Returns: (int) 1 if key is used

// This is called each time the cursor is inside your menu and a keyboard

// key has been pressed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Key( HWND wnd, int key, short x, short y )

{

// --- Depending on the current tab, call the appropriate func ---

return( (*(Func_Key[tab.Cur_Value]))( wnd, key, x, y ) ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Motion

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the cursor

// has moved.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Motion( HWND wnd, int up_down, short x, short y )

{

// ------------------------------------------------

// The mouse has moved. By calling "select" we

// insure that the box will get the "select" color

// if the cursor is over it.

// ------------------------------------------------

tab.Select( KEY_QUERY ) ;

// --- Depending on the current tab, call the appropriate func ---

(*(Func_Motion[tab.Cur_Value]))( wnd, up_down, x, y ) ;

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Scroll

// Parameters: count (int) number of mouse wheel cliks

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the mouse

// wheel has been activated.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Scroll( HWND wnd, int count, short x, short y )

{

// --- Depending on the current tab, call the appropriate func ---

(*(Func_Scroll[tab.Cur_Value]))( wnd, count, x, y ) ;

return( 0 ) ;

}

...

// ============================================================================

void Tab_1_Init( void )

{

}

int Tab_1_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color )

{

return( 1 ) ;

}

void Tab_1_Draw( HWND wnd )

{

}

int Tab_1_Click( HWND wnd, int up_down, short x, short y )

{

return( 1 ) ;

}

void Tab_1_Motion( HWND wnd, int up_down, short x, short y )

{

}

void Tab_1_Scroll( HWND wnd, int count, short x, short y )

{

}

int Tab_1_Key( HWND wnd, int key, short x, short y )

{

return( 1 ) ;

}

// ============================================================================

void Tab_2_Init( void )

{

}

int Tab_2_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color )

{

return( 1 ) ;

}

void Tab_2_Draw( HWND wnd )

{

}

int Tab_2_Click( HWND wnd, int up_down, short x, short y )

{

return( 1 ) ;

}

void Tab_2_Motion( HWND wnd, int up_down, short x, short y )

{

}

void Tab_2_Scroll( HWND wnd, int count, short x, short y )

{

}

int Tab_2_Key( HWND wnd, int key, short x, short y )

{

return( 1 ) ;

}

// ============================================================================

void Tab_3_Init( void )

{

}

int Tab_3_Resize( HWND wnd, short p_x, short p_y, short d_x, short d_y, Colors color )

{

return( 1 ) ;

}

void Tab_3_Draw( HWND wnd )

{

}

int Tab_3_Click( HWND wnd, int up_down, short x, short y )

{

return( 1 ) ;

}

void Tab_3_Motion( HWND wnd, int up_down, short x, short y )

{

}

void Tab_3_Scroll( HWND wnd, int count, short x, short y )

{

}

int Tab_3_Key( HWND wnd, int key, short x, short y )

{

return( 1 ) ;

}
