TomoVision_Tools: Labels

The Labels class enable you to draw a text label in the interface. The "Pos_X", "Pos_Y", "Dim_X" and "Dim_Y" variables define a region where the label will be. You can use the flag to align the text within that region. The color of the label is defined by the "Color" variable.

The flags that affect the Labels are:

OUTIL_VERTICAL

// the name is drawn vertically

NAME_V_CENT

NAME_TOP

NAME_BOTTOM

// vertical position of the name in the tool

NAME_H_CENT

NAME_LEFT

NAME_RIGHT

// Horizontal position of the name in the tool

The variables that are specific to the Labels class are:

Colors color ;

// The "color" variable is not really specific to the labels class, but in this case it is used to define the color of the text, not of the tools' background.

The methods that are specific to the labels are:

None.

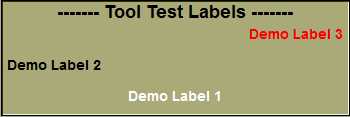

An example of the usage of the Labels class is given in the Samples\Demo Tools\Labels demo directory. the resulting interface for this demo look like this:

The tool_test_labels_ctrl.cpp file from the Labels demo

...

// --- Interface tools ---

static Boxs box_box ;

static Labels label_demo_1 ;

static Labels label_demo_2 ;

static Labels label_demo_3 ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short Button_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_BUTTON_DIM_BIG" ) ;

short Title_Dim = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim + 2 // title at top of tool

+ Button_Dim_Big // Label 3

+ Space_Dim // space between box1 and box 2

+ Button_Dim_Big // Label 2

+ Space_Dim // space between box2 and box 3

+ Button_Dim_Big // Label 3

+ Space_Dim ; // space at the bottom

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Labels -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short Button_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_BUTTON_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Box 1:

// Default FLAG value (=NULL), text color=white.

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + Space_Dim ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = Button_Dim_Big ;

label_demo_1.Name = "Demo Label 1" ;

label_demo_1.Pos_X = p_x ;

label_demo_1.Pos_Y = p_y ;

label_demo_1.Dim_X = d_x ;

label_demo_1.Dim_Y = d_y ;

label_demo_1.border = Border_Dim ;

label_demo_1.Font_Name = Tools_Font_Name ;

label_demo_1.Font_Weight = Tools_Font_Weigth ;

label_demo_1.Font_Scale = Tools_Font_Scale ;

label_demo_1.Init( wnd ) ;

// ===========================================================================

// --- Box 2

// text align to the left, color=black

// note: the color 0,0,0 is reserved, so we use 1,0,0 for black

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = Button_Dim_Big ;

label_demo_2.Flag = NAME_LEFT ;

label_demo_2.Name = "Demo Label 2" ;

label_demo_2.Pos_X = p_x ;

label_demo_2.Pos_Y = p_y ;

label_demo_2.Dim_X = d_x ;

label_demo_2.Dim_Y = d_y ;

label_demo_2.border = Border_Dim ;

label_demo_2.color.set( 1, 0, 0 ) ;

label_demo_2.Font_Name = Tools_Font_Name ;

label_demo_2.Font_Weight = Tools_Font_Weigth ;

label_demo_2.Font_Scale = Tools_Font_Scale ;

label_demo_2.Init( wnd ) ;

// ===========================================================================

// --- Box 3

// text align to the right, color=red

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = Button_Dim_Big ;

label_demo_3.Flag = NAME_RIGHT ;

label_demo_3.Name = "Demo Label 3" ;

label_demo_3.Pos_X = p_x ;

label_demo_3.Pos_Y = p_y ;

label_demo_3.Dim_X = d_x ;

label_demo_3.Dim_Y = d_y ;

label_demo_3.border = Border_Dim ;

label_demo_3.color.set( 255, 0, 0 ) ;

label_demo_3.Font_Name = Tools_Font_Name ;

label_demo_3.Font_Weight = Tools_Font_Weigth ;

label_demo_3.Font_Scale = Tools_Font_Scale ;

label_demo_3.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- We draw each of our 3 labels ---

label_demo_1.Draw() ;

label_demo_2.Draw() ;

label_demo_3.Draw() ;

return( 1 ) ;

}

...
