TomoVision_Tools: Texts

The Texts class enable you to draw a rectangular text box in the interface.

The flags that affect the valuators are:

	OUTIL_INVISIBLE	// no graphics
	OUTIL_DISABLE	// no select (but graphics OK)
	OUTIL_VERTICAL	// the name is drawn vertically
	OUTIL_EMPTY	// no fill
	OUTIL_OUTLINE	// border as blue outline
	OUTIL_NO_3D	// flat fill
	OUTIL_NO_BORDER	// do not draw the outside box
	NAME_V_CENT NAME_TOP NAME_BOTTOM	// vertical position of the name in the tool
	NAME_H_CENT NAME_LEFT NAME_RIGHT	// Horizontal position of the name in the tool
	TEXT_READ_WIND TEXT_INPUT_WIND	// Tool include an input line // Tool is only composed of the input line
	TEXT_PASSWD	// The input line feedback is only "*" characters
	TEXT_INT_ONLY TEXT_FLOAT_ONLY TEXT_HEX_ONLY	// The input line only accept integer values (0 to 9) // The input line only accept floating point values (0 to 9, . and e) // The input line only accept hexadecimal values (0 to 9, A to F)
	TEXT_H_CURSOR TEXT_V_CURSOR	// Tool include an horizontal slider // Tool include an vertical slider
	TEXT_KEY_FEEDBACK	// Input line is updated after each character

The methods that are specific to the valuators are:

	void Read( char *str, ... ) ;	// Put the tool in input mode and write text to the input line
	void Scroll( int val ) ;	// Scroll the text window "val" lines
	void Write( char *str, ... ) ;	// Write a line of text to the tool
	void OverWrite( char *format, ... ) ;	// Overwrite a line of text
	void Cleanup( void ) ;	// clear the old text
	void Input( int c ) ;	// Catch the characters typed in the input window

When writing text to the tool, some ASCII values are reserved for font and color controls:

0x01

0x02

0x03

0x04

0x05

0x06

Blue text

Black text

White text

Red text

Yellow text

Green text

0xF0

0xF1

0xF2

Normal text

Bold text

Italic text

ex:

text.Write( "Text: \01 Blue, \02 Black, \03 White \04 Red, \05 Yellow, \06 Green" ) ;

text.Write( "Text: \xF0 Normal, \xF1 Bold, \xF2 Italic" ) ;

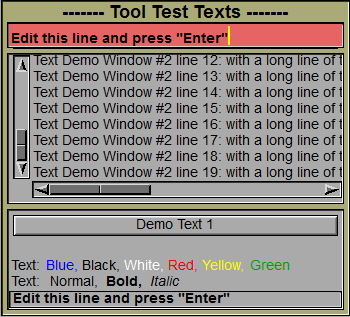

An example of the usage of the Texts class is given in the Samples\Demo Tools\Texts demo directory. the resulting interface for this demo look like this:

The tool_test_texts_ctrl.cpp file from the Texts demo

...

// --- Interface tools ---

static Boxs box_box ;

static Texts demo_1 ;

static Texts demo_2 ;

static Texts demo_3 ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short Title_Dim = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim + 2 // title at top of tool

+ 25 // Box 1

+ Space_Dim // space between box1 and box 2

+ 150 // Box 2

+ Space_Dim // space between box2 and box 3

+ 100 // Box 3

+ Space_Dim ; // space at the bottom

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Texts -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Box 1:

// Default FLAG value (=NULL) with title

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + Space_Dim ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = 100 ;

demo_1.Name = "Demo Text 1" ;

demo_1.Pos_X = p_x ;

demo_1.Pos_Y = p_y ;

demo_1.Dim_X = d_x ;

demo_1.Dim_Y = d_y ;

demo_1.border = Border_Dim ;

demo_1.Font_Name = Tools_Font_Name ;

demo_1.Font_Weight = Tools_Font_Weigth ;

demo_1.Font_Scale = Tools_Font_Scale ;

demo_1.Init( wnd ) ;

// --- write a couple of lines ---

demo_1.Write( "Text: \001Blue, \002Black, \003White, \004Red, \005Yellow, \006Green" ) ;

demo_1.Write( "Text: \xF0 Normal, \xF1 Bold, \xF2 Italic" ) ;

demo_1.Read( "Edit this line and press \"Enter\"" ) ;

// ===========================================================================

// --- Box 2

// With both vertical and horizontal sliders

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = 150 ;

demo_2.Flag = TEXT_H_CURSOR | TEXT_V_CURSOR ;

demo_2.Pos_X = p_x ;

demo_2.Pos_Y = p_y ;

demo_2.Dim_X = d_x ;

demo_2.Dim_Y = d_y ;

demo_2.border = Border_Dim ;

demo_2.Font_Name = Tools_Font_Name ;

demo_2.Font_Weight = Tools_Font_Weigth ;

demo_2.Font_Scale = Tools_Font_Scale ;

demo_2.Init( wnd ) ;

// --- write a few lines to show the cursors ---

demo_2.Write( "Text Demo Window #2 line 1: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 2: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 3: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 4: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 5: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 6: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 7: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 8: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 9: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 10: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 11: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 12: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 13: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 14: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 15: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 16: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 17: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 18: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

demo_2.Write( "Text Demo Window #2 line 19: with a long line of text that should be long enough to necessitate the use of the horizontal slider" ) ;

// ===========================================================================

// --- Box 3

// input line only

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = 25 ;

demo_3.Flag = TEXT_INPUT_WIND ;

demo_3.Name = "Demo Text 3" ;

demo_3.Pos_X = p_x ;

demo_3.Pos_Y = p_y ;

demo_3.Dim_X = d_x ;

demo_3.Dim_Y = d_y ;

demo_3.border = Border_Dim ;

demo_3.Font_Name = Tools_Font_Name ;

demo_3.Font_Weight = Tools_Font_Weigth ;

demo_3.Font_Scale = Tools_Font_Scale ;

demo_3.Init( wnd ) ;

demo_3.Read( "Edit this line and press \"Enter\"" ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- We draw each of our 3 boxes ---

demo_1.Draw() ;

demo_2.Draw() ;

demo_3.Draw() ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Leave

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time the cursor leave your menu

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Leave( void )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

demo_1.Deselect() ;

demo_2.Deselect() ;

demo_3.Deselect() ;

return( 1 ) ;

}

// ============================================================================

// ----------------------------------------------------------------------------

// Function: Ctrl_Click

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the state

// of the mouse buttons has changed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Click( HWND wnd, int up_down, short x, short y )

{

// --- We only refresh the image when we release the button ---

if ( ! up_down ) {

return( 0 ) ;

}

// ------------------------------------------------

// We received a mouse click, now we try to find in

// which box the click was. For this we use the

// "select" method. If will tell us if the mouse

// is inside the box.

// ------------------------------------------------

if ( demo_1.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #1" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( demo_2.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #2" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( demo_3.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #3" ) ;

return( 1 ) ;

}

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Key

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// key (int) code of the activated key

// x, y (int) current cursor position

// Returns: (int) 1 if key is used

// This is called each time the cursor is inside your menu and a keyboard

// key has been pressed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Key( HWND wnd, int key, short x, short y )

{

// --- we activated a keyborad key while inside a text window ---

if ( demo_3.Select( 1 ) ) {

// --- parse this key ---

demo_3.Input( key ) ;

// --- did we press "Enter?" ---

char *str = demo_3.Update() ;

if ( str ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Text #3, read: \"%s\"", str ) ;

// --- put back in "read" mode ---

demo_3.Read( "" ) ;

}

return( 1 ) ;

}

if ( demo_1.Select( 1 ) ) {

// --- parse this key ---

demo_1.Input( key ) ;

// --- did we press "Enter?" ---

char *str = demo_1.Update() ;

if ( str ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Text #1, read: \"%s\"", str ) ;

// --- put back in "read" mode ---

demo_1.Read( "" ) ;

}

return( 1 ) ;

}

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Motion

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the cursor

// has moved.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Motion( HWND wnd, int up_down, short x, short y )

{

// ------------------------------------------------

// The mouse has moved. By calling "select" we

// insure that the box will get the "select" color

// if the cursor is over it.

// Note: since box #2 has the "OUTIL_DISABLE" bit

// set in its flag, the "select" has no

// effect on it.

// ------------------------------------------------

demo_1.Select( up_down ) ;

demo_2.Select( up_down ) ;

demo_3.Select( up_down ) ;

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Scroll

// Parameters: count (int) number of mouse wheel cliks

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the mouse

// wheel has been activated.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Scroll( HWND wnd, int count, short x, short y )

{

// ------------------------------------------------

// The scroll can be used by the vertical and horizontal cursors

// ------------------------------------------------

if ( demo_1.Select( KEY_QUERY ) ) {

demo_1.Scroll( -count ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( demo_2.Select( KEY_QUERY ) ) {

demo_2.Scroll( -count ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( demo_3.Select( KEY_QUERY ) ) {

demo_3.Scroll( -count ) ;

return( 1 ) ;

}

return( 0 ) ;

}

...
