TomoVision_Tools: Selects

The Selects class enable you to draw a selection tool in the interface. This tool let you select one value out of a pre-defined list. You can scroll through that list with arrow buttons.

The flags that affect the Selects are:

	OUTIL_INVISIBLE	// no graphics
	OUTIL_DISABLE	// no select (but graphics OK)
	OUTIL_VERTICAL	// the name is drawn vertically
	OUTIL_EMPTY	// no fill
	OUTIL_OUTLINE	// border as blue outline
	OUTIL_NO_3D	// flat fill
	OUTIL_NO_BORDER	// do not draw the outside box
	NAME_V_CENT NAME_TOP NAME_BOTTOM	// vertical position of the name in the tool
	NAME_H_CENT NAME_LEFT NAME_RIGHT	// Horizontal position of the name in the tool

The variables that are specific to the Selects class are:

	short Cur_Value ;	// current value of the selection
	short Arrow_Size ;	// Limit the size of the tool's arrows
	short Select_Size ;	// Limit the horizontal size of the selection box within the tool
	Buttons **Item ;	// List of buttons. Only one of these is displayed at a time.

The methods that are specific to the Selects are:

	int Read( void ) ;	// return the index of the current selection.
	int Scroll( int val ) ;	//
	int Grow( int size ) ;	// Grow (or shrink) the "Item" list of buttons.

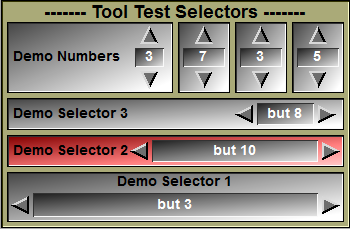

An example of the usage of the Selects class is given in the Samples\Demo Tools\Selects demo directory. the resulting interface for this demo look like this:

The tool_test_selects_ctrl.cpp file from the Selects demo

...

// --- Interface tools ---

static Boxs box_box ;

static Buttons but_demo_1 ;

static Buttons but_demo_2 ;

static Buttons but_demo_3 ;

static Selects sel_demo_1 ;

static Selects sel_demo_2 ;

static Selects sel_demo_3 ;

static Selects sel_number[4] ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short Button_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_BUTTON_DIM_BIG" ) ;

short Title_Dim_Sml = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_SML" ) ;

short Title_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim_Big + 2 // title at top of tool

+ 70 // Tool 4 to 7

+ Space_Dim // space between box1 and box 2

+ Button_Dim_Big + Space_Dim // Tool 3

+ Space_Dim // space between box1 and box 2

+ Button_Dim_Big + Space_Dim // Tool 2

+ Space_Dim // space between box2 and box 3

+ Button_Dim_Big + Space_Dim + Title_Dim_Sml // Tool 1

+ Space_Dim ; // space at the bottom

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Selectors -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short i, k, p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short Button_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_BUTTON_DIM_BIG" ) ;

short Title_Dim_Sml = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_SML" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

int nb_but = 10 ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Tool 1:

// Default FLAG value (=NULL), text at the top

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + Space_Dim ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = Button_Dim_Big + Space_Dim + Title_Dim_Sml ;

sel_demo_3.Flag = NAME_H_CENT | NAME_TOP ;

sel_demo_1.Name = "Demo Selector 1" ;

sel_demo_1.Pos_X = p_x ;

sel_demo_1.Pos_Y = p_y ;

sel_demo_1.Dim_X = d_x ;

sel_demo_1.Dim_Y = d_y ;

sel_demo_1.Arrow_Size = Button_Dim_Big - Space_Dim - 2 ;

sel_demo_1.border = Border_Dim ;

sel_demo_1.Font_Name = Tools_Font_Name ;

sel_demo_1.Font_Weight = Tools_Font_Weigth ;

sel_demo_1.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

sel_demo_1.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

sel_demo_1.Item[i]->Set_Name( "but %d", i+1 ) ;

sel_demo_1.Init( wnd ) ;

// ===========================================================================

// --- Tool 2

// text on the left

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = Button_Dim_Big + Space_Dim ;

sel_demo_2.Flag = NAME_V_CENT | NAME_LEFT ;

sel_demo_2.Name = "Demo Selector 2" ;

sel_demo_2.Pos_X = p_x ;

sel_demo_2.Pos_Y = p_y ;

sel_demo_2.Dim_X = d_x ;

sel_demo_2.Dim_Y = d_y ;

sel_demo_2.Arrow_Size = Button_Dim_Big - Space_Dim - 2 ;

sel_demo_2.border = Border_Dim ;

sel_demo_2.Font_Name = Tools_Font_Name ;

sel_demo_2.Font_Weight = Tools_Font_Weigth ;

sel_demo_2.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

sel_demo_2.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

sel_demo_2.Item[i]->Set_Name( "but %d", i+1 ) ;

sel_demo_2.Init( wnd ) ;

// ===========================================================================

// --- Tool 3

// text on the left, limit select size

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = Button_Dim_Big + Space_Dim ;

sel_demo_3.Flag = NAME_V_CENT | NAME_LEFT ;

sel_demo_3.Name = "Demo Selector 3" ;

sel_demo_3.Pos_X = p_x ;

sel_demo_3.Pos_Y = p_y ;

sel_demo_3.Dim_X = d_x ;

sel_demo_3.Dim_Y = d_y ;

sel_demo_3.Arrow_Size = Button_Dim_Big - Space_Dim - 2 ;

sel_demo_3.Select_Size = 100 ;

sel_demo_3.border = Border_Dim ;

sel_demo_3.Font_Name = Tools_Font_Name ;

sel_demo_3.Font_Weight = Tools_Font_Weigth ;

sel_demo_3.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

sel_demo_3.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

sel_demo_3.Item[i]->Set_Name( "but %d", i+1 ) ;

sel_demo_3.Init( wnd ) ;

// ===========================================================================

// --- Tool 4 to 7

// Vertical

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y += d_y + Space_Dim ;

d_x = (box_box.Dim_X - 3*Space_Dim) / 2 ;

d_y = 70 ;

for ( k=0; k < 4; k++ ) {

sel_number[k].Flag = OUTIL_VERTICAL| NAME_V_CENT| NAME_LEFT ;

sel_number[k].Pos_X = p_x ;

sel_number[k].Pos_Y = p_y ;

sel_number[k].Dim_X = d_x ;

sel_number[k].Dim_Y = d_y ;

sel_number[k].Arrow_Size = Button_Dim_Big - Space_Dim - 2 ;

sel_number[k].border = Border_Dim ;

sel_number[k].Font_Name = Tools_Font_Name ;

sel_number[k].Font_Weight = Tools_Font_Weigth ;

sel_number[k].Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

sel_number[k].Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

sel_number[k].Item[i]->Set_Name( "%d", i ) ;

// --- increment position for next tool ---

p_x += d_x + Space_Dim ;

// --- only fisrt tool has a label ---

if ( k == 0 ) {

sel_number[k].Name = "Demo Numbers" ;

sel_number[k].Select_Size = 30 ;

// --- shrink size of next tools ---

d_x = (d_x - 2*Space_Dim) / 3 ;

}

sel_number[k].Init( wnd ) ;

}

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

short k ;

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- We draw each of our 3 boxes ---

sel_demo_1.Draw() ;

sel_demo_2.Draw() ;

sel_demo_3.Draw() ;

for ( k=0; k < 4; k++ )

sel_number[k].Draw() ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Leave

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time the cursor leave your menu

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Leave( void )

{

short k ;

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

sel_demo_1.Deselect() ;

sel_demo_2.Deselect() ;

sel_demo_3.Deselect() ;

for ( k=0; k < 4; k++ )

sel_number[k].Deselect() ;

return( 1 ) ;

}

// ============================================================================

// ----------------------------------------------------------------------------

// Function: Ctrl_Click

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the state

// of the mouse buttons has changed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Click( HWND wnd, int up_down, short x, short y )

{

short k ;

// --- We only refresh the image when we release the button ---

if ( ! up_down ) {

return( 0 ) ;

}

// ------------------------------------------------

// We received a mouse click, now we try to find in

// which box the click was. For this we use the

// "select" method. If will tell us if the mouse

// is inside the tool's box.

// ------------------------------------------------

if ( sel_demo_1.Select( up_down ) ) {

// --- Read the index of the button. ---

// -1 is used for a click on the arrows, so we skip it ---

int rep = sel_demo_1.Read() ;

if ( rep >= 0 ) {

sel_demo_1.Cur_Value = rep ;

sel_demo_1.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #1, button %d", rep ) ;

}

return( 1 ) ;

}

// ------------------------------------------------

if ( sel_demo_2.Select( up_down ) ) {

// --- Read the index of the button. ---

// -1 is used for a click on the arrows, so we skip it ---

int rep = sel_demo_2.Read() ;

if ( rep >= 0 ) {

sel_demo_2.Cur_Value = rep ;

sel_demo_2.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #2, button %d", rep ) ;

}

return( 1 ) ;

}

// ------------------------------------------------

if ( sel_demo_3.Select( up_down ) ) {

// --- Read the index of the button. ---

// -1 is used for a click on the arrows, so we skip it ---

int rep = sel_demo_3.Read() ;

if ( rep >= 0 ) {

sel_demo_3.Cur_Value = rep ;

sel_demo_3.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #3, button %d", rep ) ;

}

return( 1 ) ;

}

// ------------------------------------------------

for ( k=0; k < 4; k++ )

if ( sel_number[k].Select( up_down ) ) {

// --- Read the index of the button. ---

// -1 is used for a click on the arrows, so we skip it ---

int rep = sel_number[k].Read() ;

if ( rep >= 0 ) {

sel_number[k].Cur_Value = rep ;

sel_number[k].Adjust() ;

}

return( 1 ) ;

}

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Motion

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the cursor

// has moved.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Motion( HWND wnd, int up_down, short x, short y )

{

short k ;

// ------------------------------------------------

// The mouse has moved. By calling "select" we

// insure that the box will get the "select" color

// if the cursor is over it.

// Note: since box #2 has the "OUTIL_DISABLE" bit

// set in its flag, the "select" has no

// effect on it.

// ------------------------------------------------

sel_demo_1.Select( up_down ) ;

sel_demo_2.Select( up_down ) ;

sel_demo_3.Select( up_down ) ;

for ( k=0; k < 4; k++ )

sel_number[k].Select( up_down ) ;

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Scroll

// Parameters: count (int) number of mouse wheel cliks

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the mouse

// wheel has been activated.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Scroll( HWND wnd, int count, short x, short y )

{

short k ;

// ------------------------------------------------

if ( sel_demo_1.Select( KEY_QUERY ) ) {

sel_demo_1.Cur_Value = sel_demo_1.Scroll( -count ) ;

sel_demo_1.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #1" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( sel_demo_2.Select( KEY_QUERY ) ) {

sel_demo_2.Cur_Value = sel_demo_2.Scroll( -count ) ;

sel_demo_2.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #2" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( sel_demo_3.Select( KEY_QUERY ) ) {

sel_demo_3.Cur_Value = sel_demo_3.Scroll( -count ) ;

sel_demo_3.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #3" ) ;

return( 1 ) ;

}

// ------------------------------------------------

for ( k=0; k < 4; k++ )

if ( sel_number[k].Select( KEY_QUERY ) ) {

sel_number[k].Cur_Value = sel_number[k].Scroll( -count ) ;

sel_number[k].Adjust() ;

return( 1 ) ;

}

return( 0 ) ;

}

...
