TomoVision_Tools: Lists

The Lists class enable you to draw a list of buttons in the interface.

The flags that affect the Lists are:

	OUTIL_INVISIBLE	// no graphics
	OUTIL_DISABLE	// no select (but graphics OK)
	OUTIL_VERTICAL	// the name is drawn vertically
	OUTIL_EMPTY	// no fill
	OUTIL_OUTLINE	// border as blue outline
	OUTIL_NO_3D	// flat fill
	OUTIL_NO_BORDER	// do not draw the outside box
	NAME_V_CENT NAME_TOP NAME_BOTTOM	// vertical position of the name in the tool
	NAME_H_CENT NAME_LEFT NAME_RIGHT	// Horizontal position of the name in the tool
	TOOL_ICON_V_CENT TOOL_ICON_TOP TOOL_ICON_BOTTOM	// vertical position of the icon's graphic
	TOOL_ICON_H_CENT TOOL_ICON_LEFT TOOL_ICON_RIGHT	// vertical position of the icon's graphic
	BUTTON_LIGHT	// add a "light" on each buttons in the list
	BUTTON_MULTICOLOR	// Enable the "lights" to be multicolor. The color is function of the value of the "Light" variable for each button: 0=off, 1=green, 2=blue, 3=yellow, 4=red.

The variables that are specific to the Lists class are:

	float Cur_Value ;	// index of the current depressed button.
	short Spacing ;	// minimum vertical size of buttons in vertical list
	short cursor ;	// width (or height) of sliders
	Buttons **Item ;	// list of buttons

The methods that are specific to the Lists are:

	int Read( void ) ;	// return the index of the button under the cursor.
	void Scroll( int val ) ;	// scroll the list
	int Grow( int size, int flag=0 ) ;	// Grow (or shrink) the "Item" list of buttons.

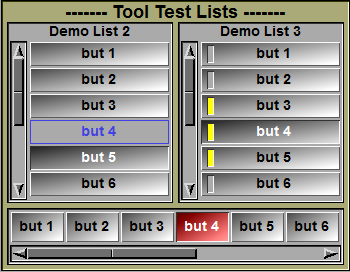

An example of the usage of the Lists class is given in the Samples\Demo Tools\Lists demo directory. the resulting interface for this demo look like this:

The tool_test_lists_ctrl.cpp file from the Lists demo

...

// --- Interface tools ---

static Boxs box_box ;

static Lists list_demo_1 ;

static Lists list_demo_2 ;

static Lists list_demo_3 ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short List_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_LIST_DIM_BIG" ) ;

short Title_Dim = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim + 2 // title at top of tool

+ 180 // List 1 & 2

+ Space_Dim // space between Lists

+ List_Dim_Big // List 3

+ Space_Dim ; // space at the bottom

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Boxs -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short i, p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short List_Dim_Big = (short) Fct_Variable_Value( "$INTERFACE_LIST_DIM_BIG" ) ;

short Cursor_Dim = (short) Fct_Variable_Value( "$INTERFACE_CURSOR_DIM" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

int nb_but = 10 ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Tool 1:

// Default FLAG value (=NULL)

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + Space_Dim ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = List_Dim_Big ;

list_demo_1.Pos_X = p_x ;

list_demo_1.Pos_Y = p_y ;

list_demo_1.Dim_X = d_x ;

list_demo_1.Dim_Y = d_y ;

list_demo_1.border = Border_Dim ;

list_demo_1.cursor = Cursor_Dim ;

list_demo_1.Font_Name = Tools_Font_Name ;

list_demo_1.Font_Weight = Tools_Font_Weigth ;

list_demo_1.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

list_demo_1.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

list_demo_1.Item[i]->Set_Name( "but %d", i+1 ) ;

list_demo_1.Init( wnd ) ;

// ===========================================================================

// --- Tool 2

// vertical

// ===========================================================================

p_y += d_y + Space_Dim ;

d_x = (box_box.Dim_X - 3*Space_Dim) / 2 ;

d_y = 180 ;

list_demo_2.Flag = OUTIL_VERTICAL ;

list_demo_2.Name = "Demo List 2" ;

list_demo_2.Pos_X = p_x ;

list_demo_2.Pos_Y = p_y ;

list_demo_2.Dim_X = d_x ;

list_demo_2.Dim_Y = d_y ;

list_demo_2.border = Border_Dim ;

list_demo_2.cursor = Cursor_Dim ;

list_demo_2.Font_Name = Tools_Font_Name ;

list_demo_2.Font_Weight = Tools_Font_Weigth ;

list_demo_2.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

list_demo_2.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

list_demo_2.Item[i]->Set_Name( "but %d", i+1 ) ;

list_demo_2.Init( wnd ) ;

// ===========================================================================

// --- Tool 3

// vertical, with lights on the buttons

// ===========================================================================

p_x += d_x + Space_Dim ;

list_demo_3.Flag = OUTIL_VERTICAL | BUTTON_LIGHT ;

list_demo_3.Name = "Demo List 3" ;

list_demo_3.Pos_X = p_x ;

list_demo_3.Pos_Y = p_y ;

list_demo_3.Dim_X = d_x ;

list_demo_3.Dim_Y = d_y ;

list_demo_3.border = Border_Dim ;

list_demo_3.cursor = Cursor_Dim ;

list_demo_3.Font_Name = Tools_Font_Name ;

list_demo_3.Font_Weight = Tools_Font_Weigth ;

list_demo_3.Font_Scale = Tools_Font_Scale ;

// --- now create the buttons for this list ---

list_demo_3.Grow( nb_but ) ;

for ( i=0; i < nb_but; i++ )

list_demo_3.Item[i]->Set_Name( "but %d", i+1 ) ;

list_demo_3.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- We draw each of our 3 tools ---

list_demo_1.Draw() ;

list_demo_2.Draw() ;

list_demo_3.Draw() ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Leave

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time the cursor leave your menu

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Leave( void )

{

// --- if the window if off or invisible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

list_demo_1.Deselect() ;

list_demo_2.Deselect() ;

list_demo_3.Deselect() ;

return( 1 ) ;

}

// ============================================================================

// ----------------------------------------------------------------------------

// Function: Ctrl_Click

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the state

// of the mouse buttons has changed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Click( HWND wnd, int up_down, short x, short y )

{

// --- We only want the key press, not the key release ---

if ( ! up_down ) {

return( 0 ) ;

}

// ------------------------------------------------

// We received a mouse click, now we try to find in

// which tool the click was. For this we use the

// "select" method. If will tell us if the mouse

// is inside the box.

// ------------------------------------------------

if ( list_demo_1.Select( up_down ) ) {

// --- which button is pressed ? ---

int ret = list_demo_1.Read() ;

list_demo_1.Cur_Value = ret ;

list_demo_1.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #1, button %d", ret ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( list_demo_2.Select( up_down ) ) {

// --- which button is pressed ? ---

int ret = list_demo_2.Read() ;

list_demo_2.Cur_Value = ret ;

list_demo_2.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #2, button %d", ret ) ;

// --- here, for the fun of it, toggle the light of

// the matching button in list 3 ---

list_demo_3.Item[ret]->Light = ! list_demo_3.Item[ret]->Light ;

list_demo_3.Draw() ;

return( 1 ) ;

}

// ------------------------------------------------

if ( list_demo_3.Select( up_down ) ) {

// --- which button is pressed ? ---

int ret = list_demo_3.Read() ;

list_demo_3.Cur_Value = ret ;

list_demo_3.Adjust() ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in tool #3, button %d", ret ) ;

// --- here, for the fun of it, toggle the "enabled" of

// the matching button in list 3 ---

list_demo_2.Item[ret]->Flag ^= OUTIL_OUT ;

list_demo_2.Draw() ;

return( 1 ) ;

}

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Motion

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the cursor

// has moved.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Motion( HWND wnd, int up_down, short x, short y )

{

// ------------------------------------------------

// The mouse has moved. By calling "select" we

// insure that the tool will get the "select" color

// if the cursor is over it and that all graphic

// will be updated.

// Note: It is important for tools with sliders,

// since this is where the slider action are

// performed.

// ------------------------------------------------

list_demo_1.Select( up_down ) ;

list_demo_2.Select( up_down ) ;

list_demo_3.Select( up_down ) ;

return( 0 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Scroll

// Parameters: count (int) number of mouse wheel cliks

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the mouse

// wheel has been activated.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Scroll( HWND wnd, int count, short x, short y )

{

// ------------------------------------------------

if ( list_demo_1.Select( KEY_QUERY ) ) {

list_demo_1.Scroll( -count ) ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #1" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( list_demo_2.Select( KEY_QUERY ) ) {

list_demo_2.Scroll( -count ) ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #2" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( list_demo_3.Select( KEY_QUERY ) ) {

list_demo_3.Scroll( -count ) ;

Error_Fct( hwnd, ERROR_CODE_REPORT, "Scrool tool #3" ) ;

return( 1 ) ;

}

return( 0 ) ;

}

...
