TomoVision_Tools: Boxs

The Boxs class enable you to draw a rectangular box in the interface. It is useful to group some other interface tools. It can also be used to detect the presence of the mouse cursor within a region. It can also be used to display an icon or an image.

The flags that affect the boxs are:

	OUTIL_INVISIBLE	// no graphics
	OUTIL_DISABLE	// no select (but graphics OK)
	OUTIL_VERTICAL	// the name is drawn vertically
	OUTIL_EMPTY	// no fill
	OUTIL_OUTLINE	// border as blue outline
	OUTIL_NO_3D	// flat fill
	OUTIL_NO_BORDER	// do not draw the outside box
	NAME_V_CENT NAME_TOP NAME_BOTTOM	// vertical position of the name in the tool
	NAME_H_CENT NAME_LEFT NAME_RIGHT	// Horizontal position of the name in the tool
	TOOL_ICON_V_CENT TOOL_ICON_TOP TOOL_ICON_BOTTOM	// vertical position of the icon's graphic
	TOOL_ICON_H_CENT TOOL_ICON_LEFT TOOL_ICON_RIGHT	// vertical position of the icon's graphic
	BOX_TEXT_WHITE	// The name of the box is white instead of black
	BOX_UP	// the look of the box is raised instead of depressed

The variables that are specific to the boxs class are:

None.

The methods that are specific to the boxs are:

None.

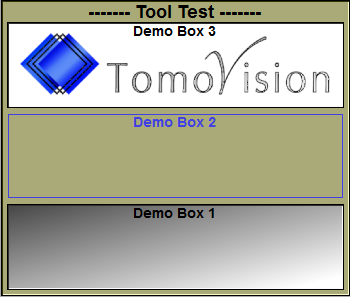

An example of the usage of the Boxs class is given in the Samples\Demo Tools\Boxs demo directory. the resulting interface for this demo look like this:

The tool_test_boxs_ctrl.cpp file from the Boxs demo

...

// --- Interface tools ---

static Boxs box_box ;

static Boxs box_demo_1 ;

static Boxs box_demo_2 ;

static Boxs box_demo_3 ;

// ----------------------------------------------------------------------------

// Function: Ctrl_Register

// Parameters: mode (unsigned short *) Used only for Tools.

// If this pointer is not NULL,

// use it to specify to what tool

// window we belong.

// SLICEO_TOOL_2D, _BASIC,_3D...

// Returns: (int) Vertical size of your menu (in pixels)

// This is called once at the start of the program. We need it to

// know you are using your own func. and how much space to reserve

// in the menu interface. You must also change the "mode" flag to

// reflect in what tool window you want to appear.

// Note: If you do not need a graphic interface, just comment out

// the "Ctrl_Register" function.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Register( unsigned short *mode )

{

// --------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface box.

// --------------------------------------------------------------------

short Title_Dim = (short) Fct_Variable_Value( "$INTERFACE_TITLE_DIM_BIG" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

// --- compute the height of the interface ---

short height = Title_Dim + 2 // title at top of tool

+ 85 // Box 1

+ Space_Dim // space between box1 and box 2

+ 85 // Box 2

+ Space_Dim // space between box2 and box 3

+ 85 // Box 3

+ Space_Dim ; // space at the bottom

return( height ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Create

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Create( HWND wnd, int width, int height )

{

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

box_box.Name = "------- Tool Test Boxs -------" ;

box_box.Flag = OUTIL_DISABLE | OUTIL_NO_3D ;

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.color.set( WINDOW_COLOR_TOOL_R,

WINDOW_COLOR_TOOL_G,

WINDOW_COLOR_TOOL_B ) ;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Resize

// Parameters: wnd (HWND) Pointer to Window's created window

// width (int) horiz. size of the window

// height (int) vert. size of the window

// Returns: (int) 0 if error

// This is called once when your control window is created

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Resize( HWND wnd, int width, int height )

{

short p_x, p_y, d_x, d_y ;

// -----------------------------------------------------------------------

// In the "Config" menu, the user can change the interface's size.

// This action change a number of variables that are used to compute

// the size of the tool in the intearface. We now load a few of these

// variables and use them to compute the dimension of our interface tools.

// -----------------------------------------------------------------------

char *Title_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_NAME" ) ;

char *Title_Font_Weight = (char *) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_WEIGHT" ) ;

short Title_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TITLE_FONT_SCALE" ) ;

char *Tools_Font_Name = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_NAME" ) ;

char *Tools_Font_Weigth = (char *) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_WEIGHT" ) ;

short Tools_Font_Scale = (short) Fct_Variable_Value( "$INTERFACE_TOOL_FONT_SCALE" ) ;

short Space_Dim = (short) Fct_Variable_Value( "$INTERFACE_SPACE_DIM" ) ;

short Border_Dim = (short) Fct_Variable_Value( "$INTERFACE_BORDER_DIM" ) ;

if ( wnd ) {

box_box.Pos_X = 1 ;

box_box.Pos_Y = 1 ;

box_box.Dim_X = width - 2 ;

box_box.Dim_Y = height - 2 ;

box_box.border = Border_Dim;

box_box.Font_Name = Title_Font_Name ;

box_box.Font_Scale = Title_Font_Scale ;

box_box.Font_Weight = Title_Font_Weight ;

box_box.Init( wnd ) ;

} else {

wnd = box_box.wnd ;

}

// ===========================================================================

// --- Box 1:

// Default FLAG value (=NULL)

// ===========================================================================

p_x = box_box.Pos_X + Space_Dim ;

p_y = box_box.Pos_Y + Space_Dim ;

d_x = box_box.Dim_X - 2*Space_Dim ;

d_y = 85 ;

box_demo_1.Name = "Demo Box 1" ;

box_demo_1.Pos_X = p_x ;

box_demo_1.Pos_Y = p_y ;

box_demo_1.Dim_X = d_x ;

box_demo_1.Dim_Y = d_y ;

box_demo_1.border = Border_Dim ;

box_demo_1.Font_Name = Tools_Font_Name ;

box_demo_1.Font_Weight = Tools_Font_Weigth ;

box_demo_1.Font_Scale = Tools_Font_Scale ;

box_demo_1.Init( wnd ) ;

// ===========================================================================

// --- Box 2

// disbaled (blue outline only)

// Note: we use "OUTIL_OUT". It is an or of 3 bits:

// OUTIL_DISABLE (so that the "select" has no effect)

// OUTIL_INVISIBLE (the normal graphic is not drawn)

// OUTIL_OUTLINE (blue outlines of the tool are drawn)

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = 85 ;

box_demo_2.Flag = OUTIL_OUT ;

box_demo_2.Name = "Demo Box 2" ;

box_demo_2.Pos_X = p_x ;

box_demo_2.Pos_Y = p_y ;

box_demo_2.Dim_X = d_x ;

box_demo_2.Dim_Y = d_y ;

box_demo_2.border = Border_Dim ;

box_demo_2.Font_Name = Tools_Font_Name ;

box_demo_2.Font_Weight = Tools_Font_Weigth ;

box_demo_2.Font_Scale = Tools_Font_Scale ;

box_demo_2.Init( wnd ) ;

// ===========================================================================

// --- Box 3

// display an image.

// Note: Image must be in TARGA 24 bits uncompressed.

// Black pixels are transparent.

// ===========================================================================

p_y += d_y + Space_Dim ;

d_y = 85 ;

box_demo_3.Name = "Demo Box 3" ;

box_demo_3.Pos_X = p_x ;

box_demo_3.Pos_Y = p_y ;

box_demo_3.Dim_X = d_x ;

box_demo_3.Dim_Y = d_y ;

box_demo_3.border = Border_Dim ;

box_demo_3.Font_Name = Tools_Font_Name ;

box_demo_3.Font_Weight = Tools_Font_Weigth ;

box_demo_3.Font_Scale = Tools_Font_Scale ;

// --- to load the image, we need to know its path and its name ---

char *Default_Icon_Path = (char *) Fct_Variable_Value( "$DEFAULT_ICON_PATH" ) ;

// --- the image is drawn over a color background. We prepare these colors. ---

// default background is grey, while default select background is redish

Colors grey(DEFAULT_GREY) ;

Colors col_red(SELECT_COLOR_R,SELECT_COLOR_G,SELECT_COLOR_B) ;

// --- We now fill out the "Graph" region of the tool with the image.

// The "Icon" method will read the TARGA image pointed to by the path

// and name strings. We also provide it with a background color.

box_demo_3.Graph_Normal = box_demo_3.Icon( Default_Icon_Path, "tomovision.tga", grey ) ;

box_demo_3.Graph_Select = box_demo_3.Icon( Default_Icon_Path, "tomovision.tga", col_red ) ;

box_demo_3.Init( wnd ) ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Draw

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time your menu has to be re-drawn

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Draw( HWND wnd )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_box.Draw() ;

// --- We draw each of our 3 boxes ---

box_demo_1.Draw() ;

box_demo_2.Draw() ;

box_demo_3.Draw() ;

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Leave

// Parameters: (void)

// Returns: (int) 0 if error

// This is called each time the cursor leave your menu

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Leave( void )

{

// --- if the window if off or invible, we can get out ---

if ( ! Flag_Ctrl_Wnd_On )

return( 1 ) ;

if ( ! Flag_Ctrl_Visible )

return( 1 ) ;

box_demo_1.Deselect() ;

box_demo_2.Deselect() ;

box_demo_3.Deselect() ;

return( 1 ) ;

}

// ============================================================================

// ----------------------------------------------------------------------------

// Function: Ctrl_Click

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the state

// of the mouse buttons has changed.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Click( HWND wnd, int up_down, short x, short y )

{

// --- We only refresh the image when we release the button ---

if ( ! up_down ) {

return( 0 ) ;

}

// ------------------------------------------------

// We received a mouse click, now we try to find in

// which box the click was. For this we use the

// "select" method. If will tell us if the mouse

// is inside the box.

// ------------------------------------------------

if ( box_demo_1.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #1" ) ;

return( 1 ) ;

}

// ------------------------------------------------

// Note: since the box #2 is disabled, the "select"

// will always return "0" and we will never

// get this click.

// ------------------------------------------------

if ( box_demo_2.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #2" ) ;

return( 1 ) ;

}

// ------------------------------------------------

if ( box_demo_3.Select( up_down ) ) {

Error_Fct( hwnd, ERROR_CODE_REPORT, "Click in box #3" ) ;

return( 1 ) ;

}

return( 1 ) ;

}

// ----------------------------------------------------------------------------

// Function: Ctrl_Motion

// Parameters: wnd (HWND) Pointer to Window's generating the signal

// up_down (int) state of the mouse buttons

// x, y (int) current cursor position

// Returns: (int) 0 if error

// This is called each time the cursor is inside your menu and the cursor

// has moved.

// ----------------------------------------------------------------------------

extern "C" __declspec(dllexport) int Ctrl_Motion( HWND wnd, int up_down, short x, short y )

{

// ------------------------------------------------

// The mouse has moved. By calling "select" we

// insure that the box will get the "select" color

// if the cursor is over it.

// Note: since box #2 has the "OUTIL_DISABLE" bit

// set in its flag, the "select" has no

// effect on it.

// ------------------------------------------------

box_demo_1.Select( up_down ) ;

box_demo_2.Select( up_down ) ;

box_demo_3.Select( up_down ) ;

return( 0 ) ;

}

...
